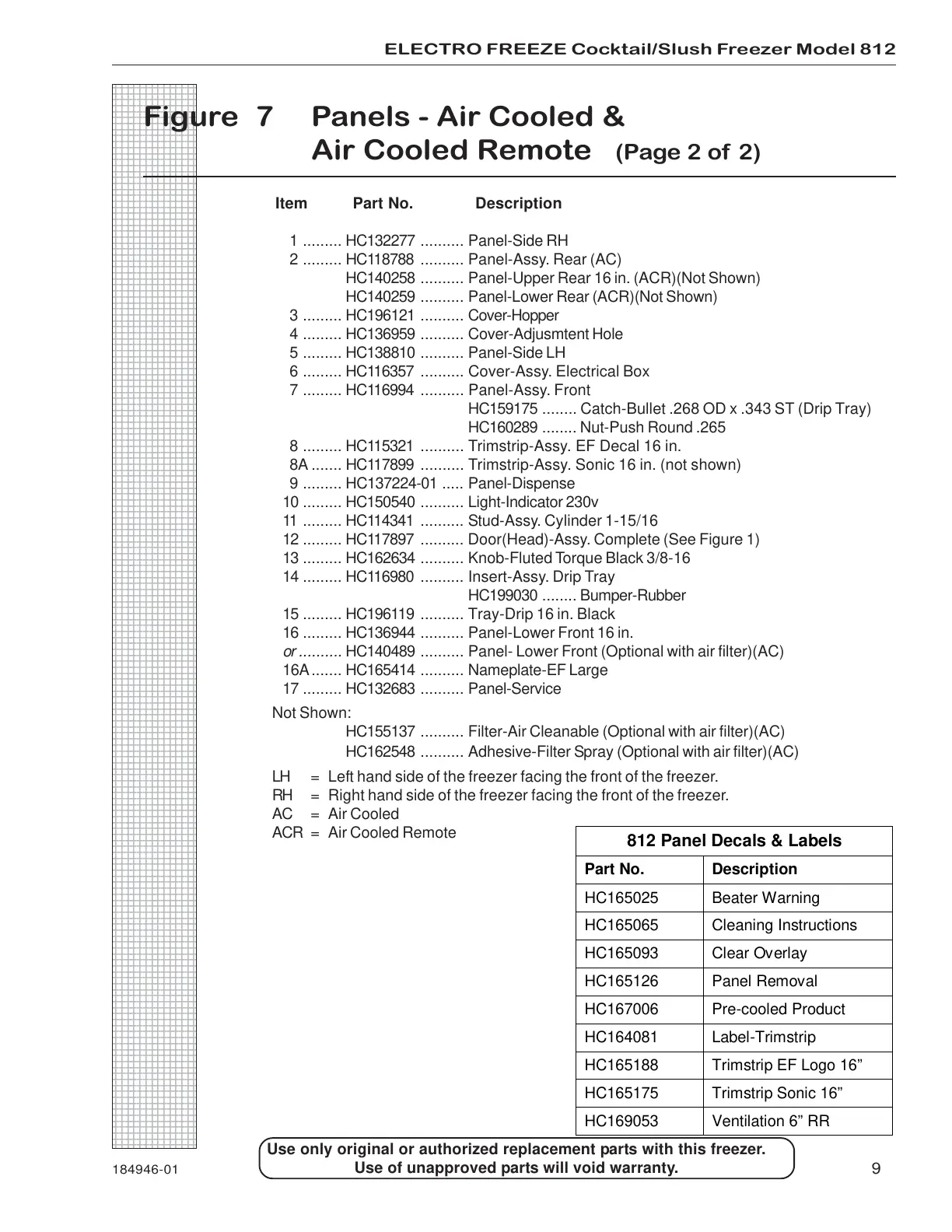

ELECTRO FREEZE Cocktail/Slush Freezer Model 812

184946-01 9

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

Item Part No. Description

1 ......... HC132277 .......... Panel-Side RH

2 ......... HC118788 .......... Panel-Assy. Rear (AC)

HC140258 .......... Panel-Upper Rear 16 in. (ACR)(Not Shown)

HC140259 .......... Panel-Lower Rear (ACR)(Not Shown)

3 ......... HC196121 .......... Cover-Hopper

4 ......... HC136959 .......... Cover-Adjusmtent Hole

5 ......... HC138810 .......... Panel-Side LH

6 ......... HC116357 .......... Cover-Assy. Electrical Box

7 ......... HC116994 .......... Panel-Assy. Front

HC159175 ........ Catch-Bullet .268 OD x .343 ST (Drip Tray)

HC160289 ........ Nut-Push Round .265

8 ......... HC115321 .......... Trimstrip-Assy. EF Decal 16 in.

8A ....... HC117899 .......... Trimstrip-Assy. Sonic 16 in. (not shown)

9 ......... HC137224-01 ..... Panel-Dispense

10 ......... HC150540 .......... Light-Indicator 230v

11 ......... HC114341 .......... Stud-Assy. Cylinder 1-15/16

12 ......... HC117897 .......... Door(Head)-Assy. Complete (See Figure 1)

13 ......... HC162634 .......... Knob-Fluted Torque Black 3/8-16

14 ......... HC116980 .......... Insert-Assy. Drip Tray

HC199030 ........ Bumper-Rubber

15 ......... HC196119 .......... Tray-Drip 16 in. Black

16 ......... HC136944 .......... Panel-Lower Front 16 in.

or.......... HC140489 .......... Panel- Lower Front (Optional with air filter)(AC)

16A....... HC165414 .......... Nameplate-EF Large

17 ......... HC132683 .......... Panel-Service

Not Shown:

HC155137 .......... Filter-Air Cleanable (Optional with air filter)(AC)

HC162548 .......... Adhesive-Filter Spray (Optional with air filter)(AC)

LH = Left hand side of the freezer facing the front of the freezer.

RH = Right hand side of the freezer facing the front of the freezer.

AC = Air Cooled

ACR = Air Cooled Remote

Figure 7 Panels - Air Cooled &

Air Cooled Remote (Page 2 of 2)

812 Panel Decals & Labels

Part No. Description

HC165025 Beater Warning

HC165065 Cleaning Instructions

HC165093 Clear Overlay

HC165126 Panel Removal

HC167006 Pre-cooled Product

HC164081 Label-Trimstrip

HC165188 Trimstrip EF Logo 16”

HC165175 Trimstrip Sonic 16”

HC169053 Ventilation 6” RR
