ELECTRO FREEZE Cocktail/Slush Freezer Model 812
184946-01 13
Use only original or authorized replacement parts with this freezer.
Use of unapproved parts will void warranty.

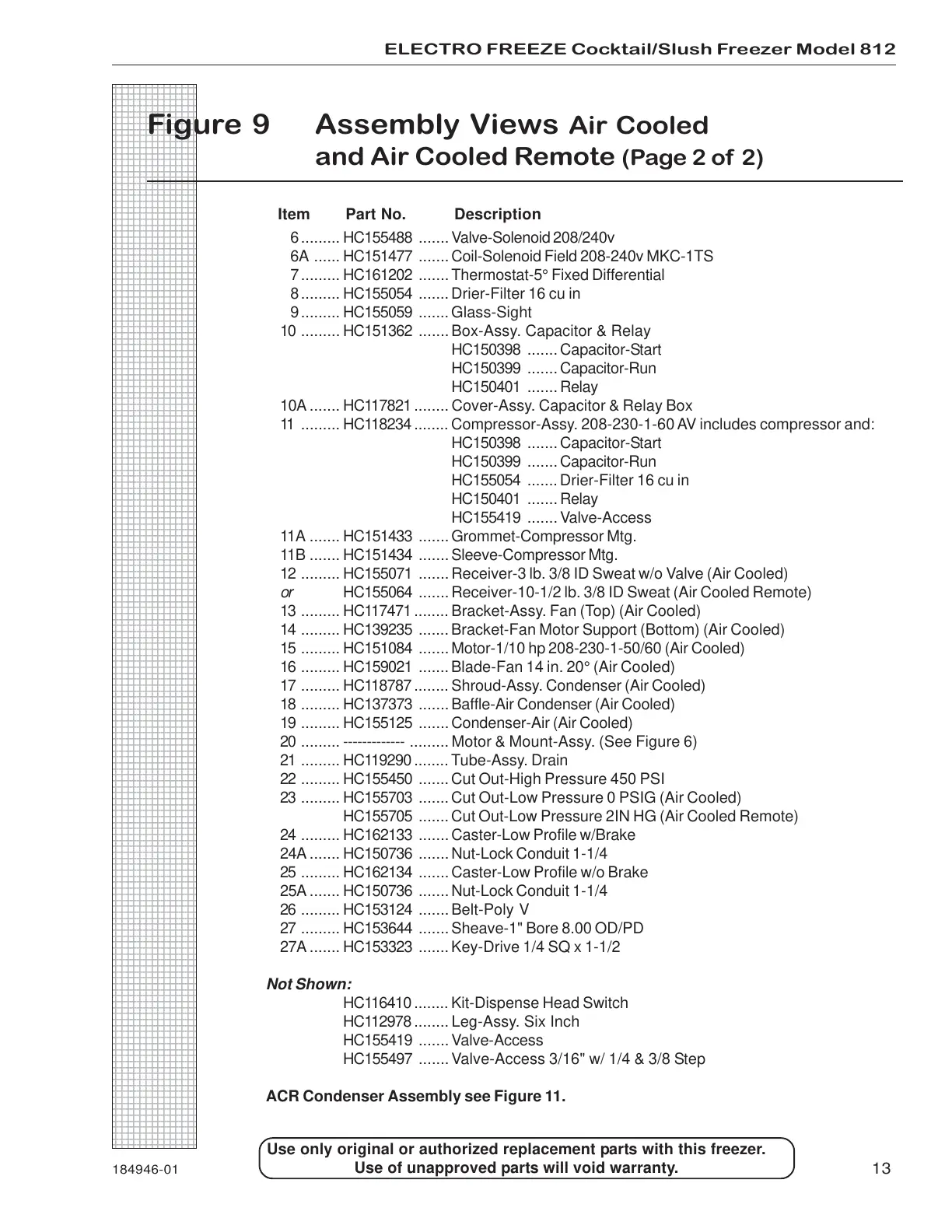

Figure 9 Assembly Views Air Cooled
and Air Cooled Remote (Page 2 of 2)
6......... HC155488 .......Valve-Solenoid 208/240v
6A ...... HC151477 .......Coil-Solenoid Field 208-240v MKC-1TS
7......... HC161202 .......Thermostat-5° Fixed Differential
8......... HC155054 .......Drier-Filter 16 cu in
9......... HC155059 .......Glass-Sight
10 ......... HC151362 .......Box-Assy. Capacitor & Relay
HC150398 .......Capacitor-Start
HC150399 .......Capacitor-Run
HC150401 .......Relay
10A....... HC117821 ........Cover-Assy. Capacitor & Relay Box
11 ......... HC118234 ........Compressor-Assy. 208-230-1-60 AV includes compressor and:
HC150398 .......Capacitor-Start
HC150399 .......Capacitor-Run
HC155054 .......Drier-Filter 16 cu in
HC150401 .......Relay
HC155419 .......Valve-Access
11A ....... HC151433 .......Grommet-Compressor Mtg.
11B ....... HC151434 .......Sleeve-Compressor Mtg.
12 ......... HC155071 .......Receiver-3 lb. 3/8 ID Sweat w/o Valve (Air Cooled)
or HC155064 .......Receiver-10-1/2 lb. 3/8 ID Sweat (Air Cooled Remote)
13 ......... HC117471 ........Bracket-Assy. Fan (Top) (Air Cooled)
14 ......... HC139235 .......Bracket-Fan Motor Support (Bottom) (Air Cooled)
15 ......... HC151084 .......Motor-1/10 hp 208-230-1-50/60 (Air Cooled)
16 ......... HC159021 .......Blade-Fan 14 in. 20° (Air Cooled)
17 ......... HC118787 ........Shroud-Assy. Condenser (Air Cooled)
18 ......... HC137373 .......Baffle-Air Condenser (Air Cooled)
19 ......... HC155125 .......Condenser-Air (Air Cooled)
20 ......... ------------- .........Motor & Mount-Assy. (See Figure 6)
21 ......... HC119290 ........Tube-Assy. Drain
22 ......... HC155450 .......Cut Out-High Pressure 450 PSI
23 ......... HC155703 .......Cut Out-Low Pressure 0 PSIG (Air Cooled)
HC155705 .......Cut Out-Low Pressure 2IN HG (Air Cooled Remote)
24 ......... HC162133 .......Caster-Low Profile w/Brake
24A....... HC150736 .......Nut-Lock Conduit 1-1/4
25 ......... HC162134 .......Caster-Low Profile w/o Brake
25A....... HC150736 .......Nut-Lock Conduit 1-1/4
26 ......... HC153124 .......Belt-Poly V
27 ......... HC153644 .......Sheave-1" Bore 8.00 OD/PD
27A....... HC153323 .......Key-Drive 1/4 SQ x 1-1/2
Not Shown:
HC116410........ Kit-Dispense Head Switch
HC112978........ Leg-Assy. Six Inch
HC155419 .......Valve-Access
HC155497 .......Valve-Access 3/16" w/ 1/4 & 3/8 Step
ACR Condenser Assembly see Figure 11.
Item Part No. Description
