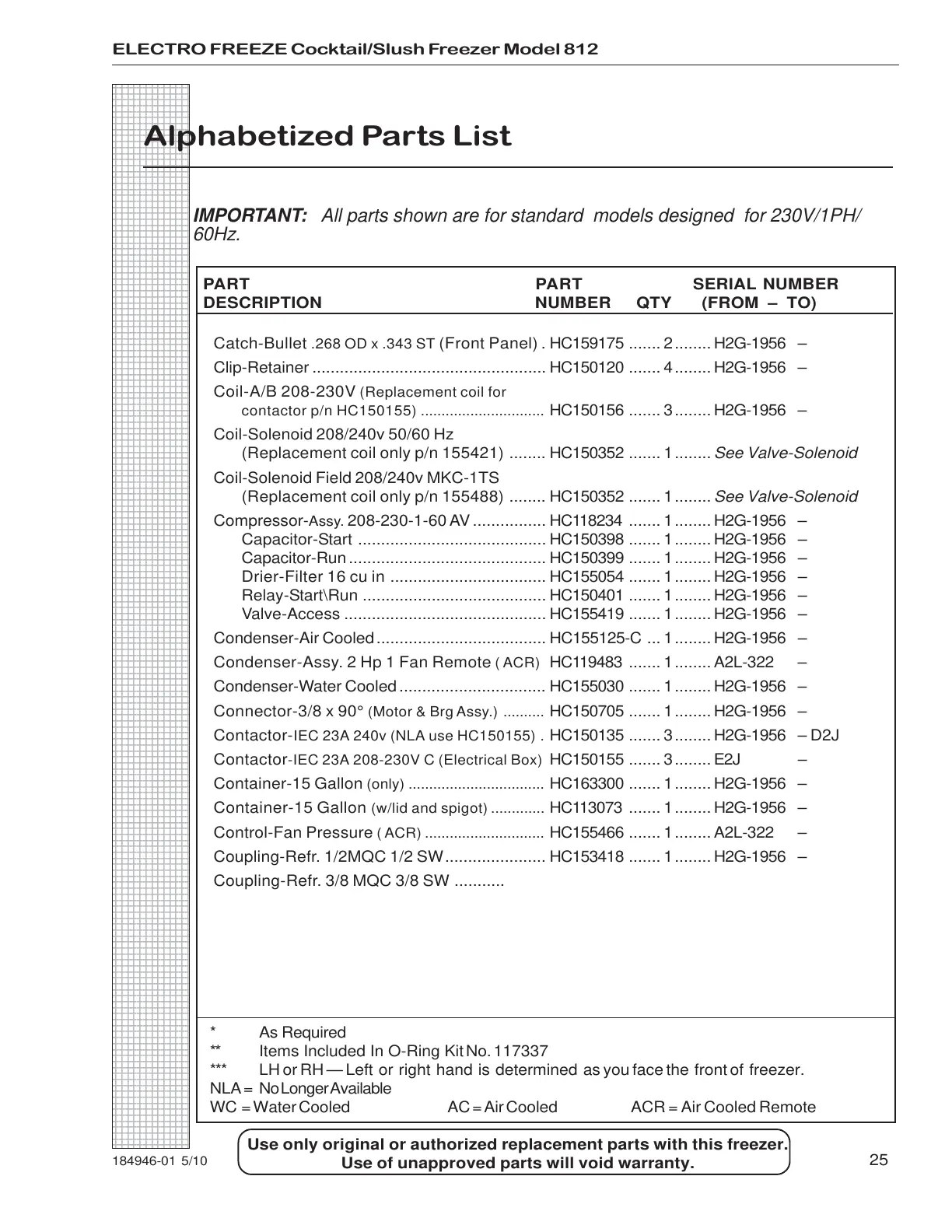

ELECTRO FREEZE Cocktail/Slush Freezer Model 812

Alphabetized Parts List

IMPORTANT: All parts shown are for standard models designed for 230V/1PH/

60Hz.

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

184946-01 5/10 25

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

* As Required

** Items Included In O-Ring Kit No. 117337

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA = No Longer Available

WC = Water Cooled AC = Air Cooled ACR = Air Cooled Remote

Catch-Bullet

.268 OD x .343 ST

(Front Panel) . HC159175 ....... 2........H2G-1956 –

Clip-Retainer ................................................... HC150120 ....... 4........H2G-1956 –

Coil-A/B 208-230V

(Replacement coil for

contactor p/n HC150155) ..............................

HC150156 ....... 3........H2G-1956 –

Coil-Solenoid 208/240v 50/60 Hz

(Replacement coil only p/n 155421) ........ HC150352 ....... 1........See Valve-Solenoid

Coil-Solenoid Field 208/240v MKC-1TS

(Replacement coil only p/n 155488) ........ HC150352 ....... 1........See Valve-Solenoid

Compressor-

Assy.

208-230-1-60 AV................ HC118234 ....... 1........ H2G-1956 –

Capacitor-Start ......................................... HC150398 ....... 1........ H2G-1956 –

Capacitor-Run........................................... HC150399 ....... 1........H2G-1956 –

Drier-Filter 16 cu in .................................. HC155054 ....... 1........H2G-1956 –

Relay-Start\Run ........................................ HC150401 ....... 1........H2G-1956 –

Valve-Access ............................................ HC155419 ....... 1........H2G-1956 –

Condenser-Air Cooled..................................... HC155125-C ... 1........ H2G-1956 –

Condenser-Assy. 2 Hp 1 Fan Remote

( ACR)

HC119483 ....... 1........A2L-322 –

Condenser-Water Cooled................................ HC155030 ....... 1........H2G-1956 –

Connector-3/8 x 90°

(Motor & Brg Assy.) ..........

HC150705 ....... 1........H2G-1956 –

Contactor-

IEC 23A 240v (NLA use HC150155) .

HC150135 ....... 3........H2G-1956 – D2J

Contactor

-IEC 23A 208-230V C (Electrical Box)

HC150155 ....... 3........E2J –

Container-15 Gallon

(only) .................................

HC163300 ....... 1........H2G-1956 –

Container-15 Gallon

(w/lid and spigot) .............

HC113073 ....... 1........H2G-1956 –

Control-Fan Pressure

( ACR) .............................

HC155466 ....... 1........A2L-322 –

Coupling-Refr. 1/2MQC 1/2 SW...................... HC153418 ....... 1........ H2G-1956 –

Coupling-Refr. 3/8 MQC 3/8 SW .................... HC153420 ....... 1........H2G-1956 –

Cover-Adjustment Hole

(Access).......................

HC136959 ....... 1........H2G-1956 –

Cover-Assy. Capacitor Box

(Compressor)......

HC117821 ....... 1........H2G-1956 –

Cover-Assy. Condenser

( ACR) .........................

HC119485 ....... 1........A2L-322 –

Cover-Assy. Electrical Box ............................ HC116357 ....... 1........H2G-1956 –
