Notice!
If the speaker installation will be delayed cover it with the paint shield/dust shield.

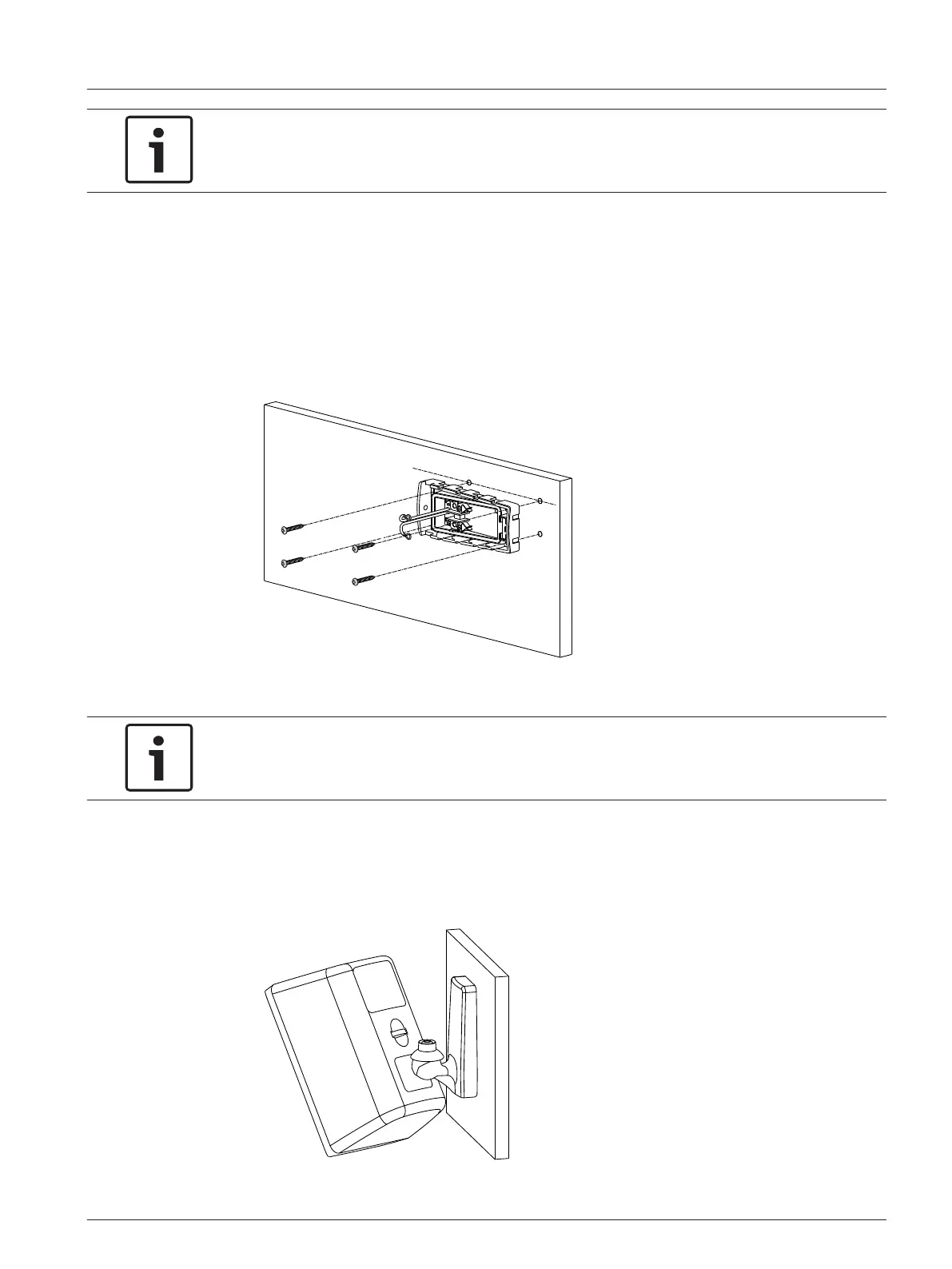

Installing the wall bracket horizontally
To install the bracket horizontally, do the following:
1. Draw a level line.
2. Align screw holes on the level line.
3. Mark the position of the wire hole.
4. Drill a hole into the wall for the wire.
The size of the hole is dependent on the size of the wire used.
5. Push the wire thru the hole.
6. Install four mounting screws to secure the wall bracket to the wall.
7. Connect the wires to wall bracket audio connectors, as shown in the wiring section.
Notice!
If the speaker installation will be delayed cover it with the paint shield/dust shield.
Installing the speaker
1. Loosen the locking bolt with the Allen wrench (supplied).
2. Adjust the horizontal and vertical position of the bracket.
en 11
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360
