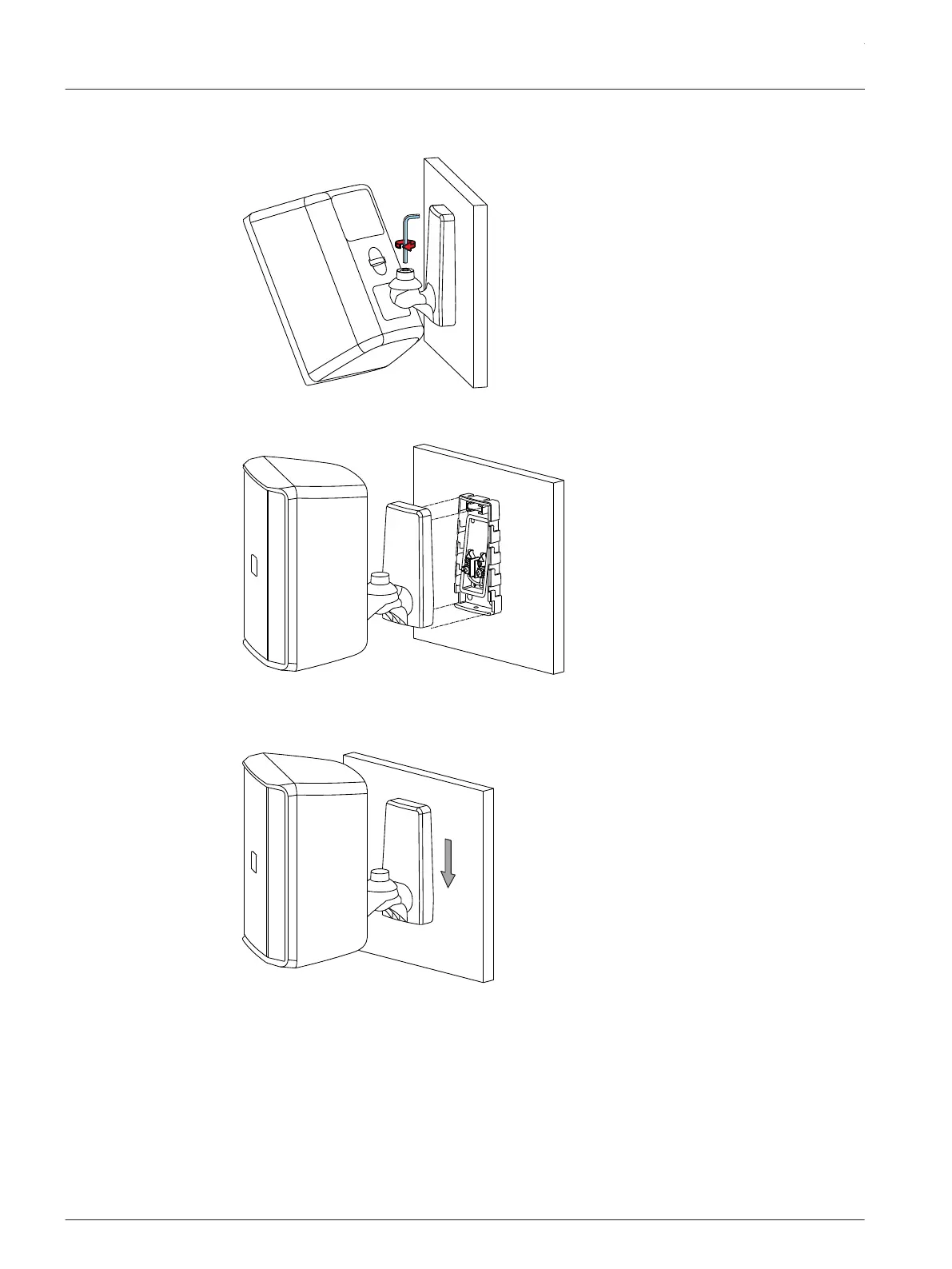

3. Tighten the locking bolt with the Allen wrench (supplied).
4. Push the speaker bracket onto the wall bracket.
5. Slide the speaker bracket down to secure bracket to the wall bracket.
This secures the bracket and makes electrical connection.
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice
