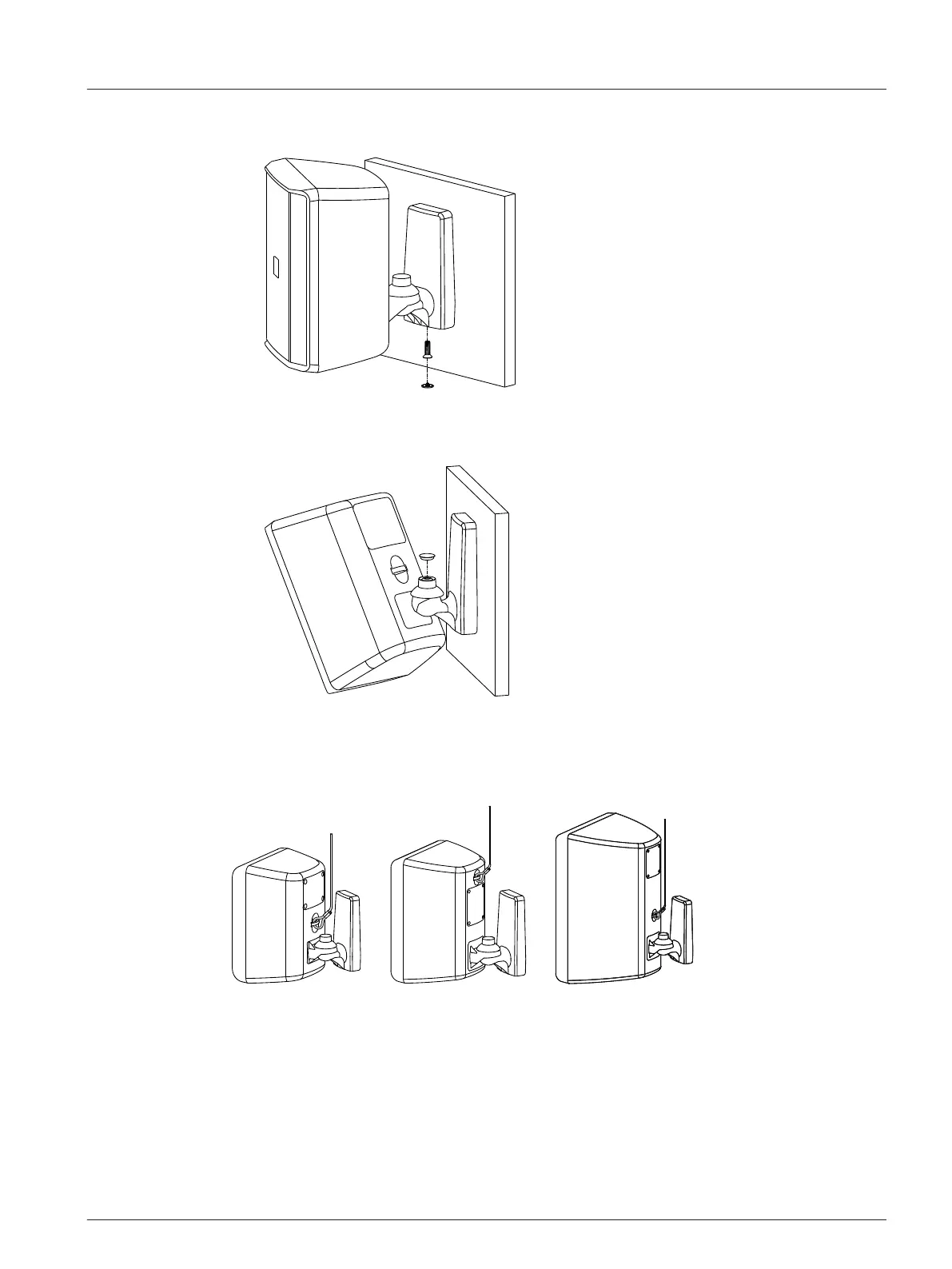

6. Install the safety screw and screw cap.
7. Readjust the horizontal and vertical speaker position, if needed.
8. Install the locking bolt cap.
Redundant safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than 1-inch is preferable).
Figure 4.1: Redundant safety point - 4" (left), 5" (center), 8" (right)
en 13
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360
