TOUR GRADE SERIES
44 Owner’s Manual
System Examples

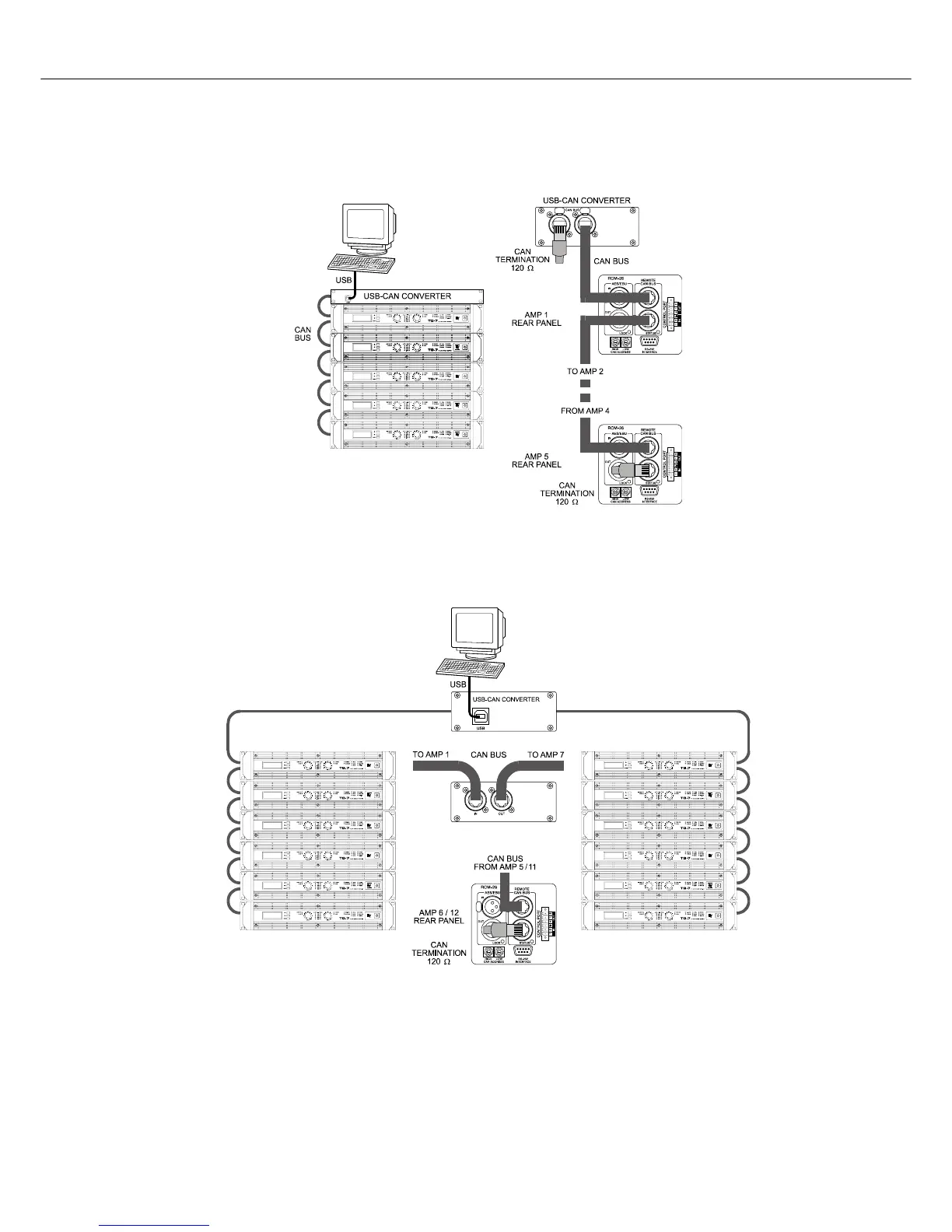

The following illustrations show examples of the data-bus wiring for different sizes of CAN-bus networks.
Illustration 4.11: System with 5 power amps (with RCM-26) and 1 USB-CAN-Converter. Termination plugs
at the USB-CAN-Converter and the RCM-26 of amp 5
Illustration 4.12: System with 2 amp-racks and 1 USB-CAN-Converter. Termination plugs at amp 6 (first unit
on the bus) and amp 12 (last unit on the bus)
