Electro-Voice TG5 - Rear Panel Controls and Connections

TOUR GRADE SERIES
8 Owner’s Manual
Rear View

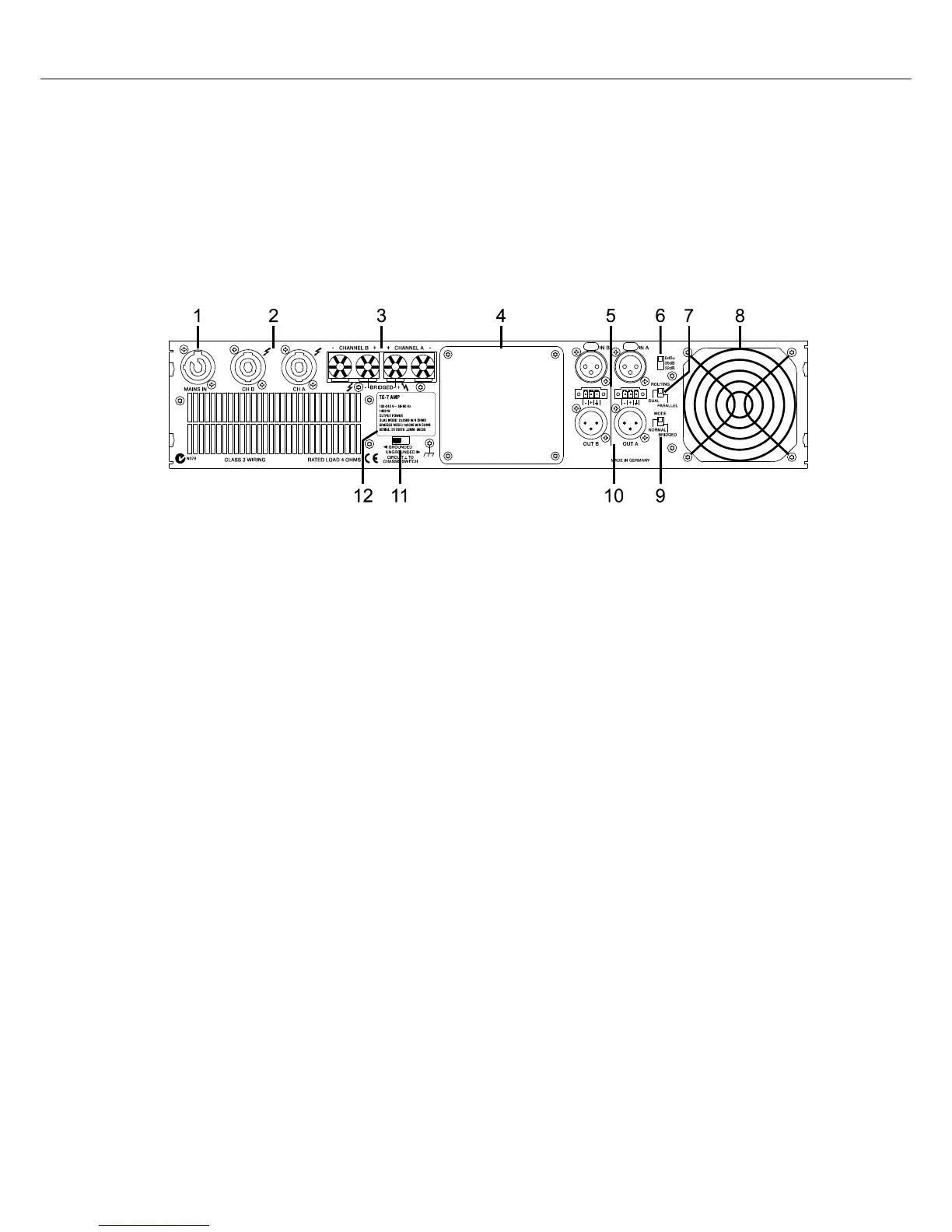

Illustration 2.2: TG-5/TG-7 rear view
1
PowerCon® Mains Input (MAINS IN)
2
Speakon™ Female-Type Power Amp Outputs (CH A, CH B)
3
Power Amp Output Terminals (CHANNEL A, CHANNEL B, BRIDGED)
4
Expansion Slot
5
XLR and Phoenix-Type Audio Inputs (IN A, IN B)
6
Input Sensitivity/Gain Switch
7
Audio Inputs Routing Switch (ROUTING)
8
Fan
9
Power Amp Outputs Mode Switch (MODE)
10
XLR-Type Audio Outputs (OUT A, OUT B)
11
Ground Lift Switch (CIRCUIT ⊥ TO CHASSIS SWITCH)
12
Type Plate
