ATS-5X User Manual Page 30 of 44

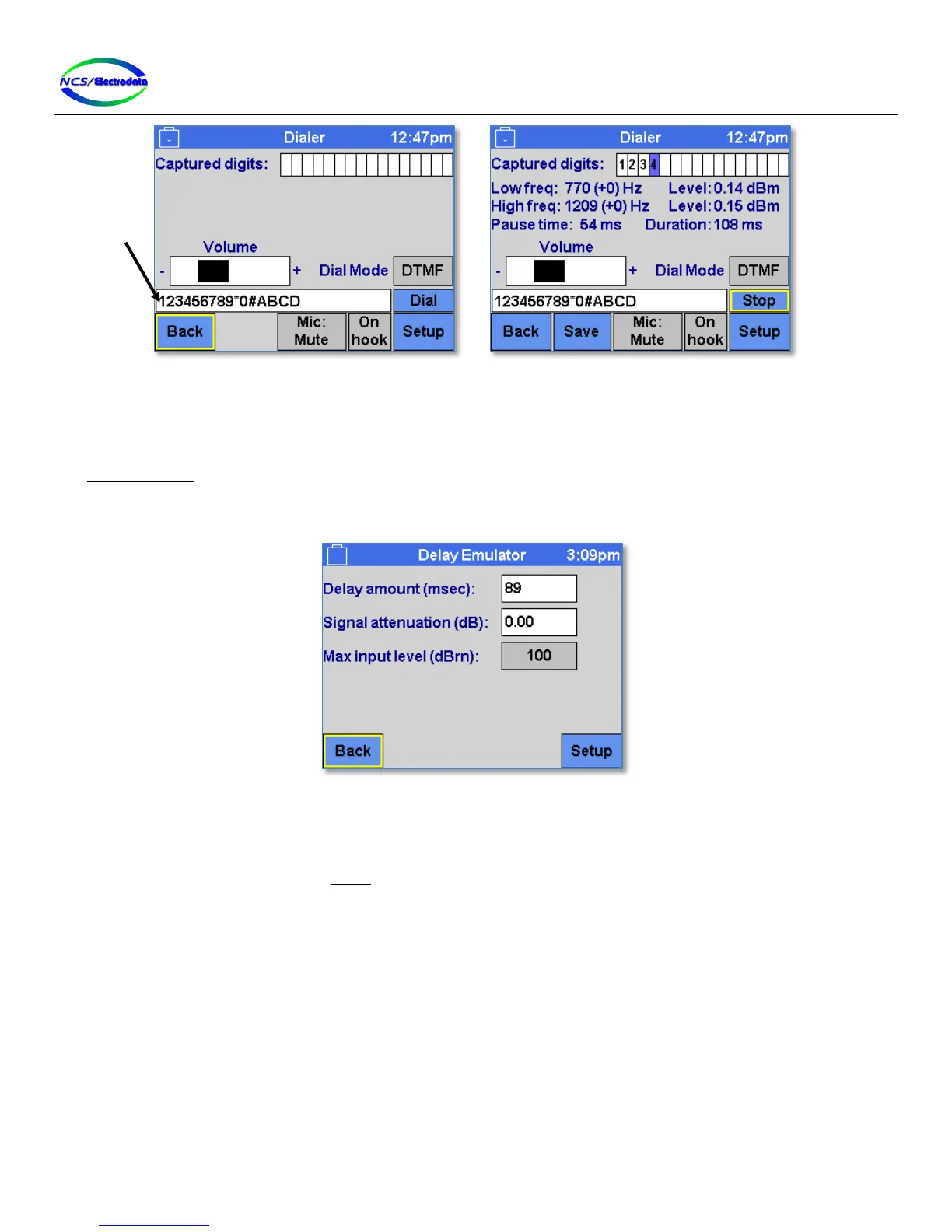

Figure 39 – Dialing with the Dialer Screen
2.7.5 Delay Emulator (4-Wire)
2.7.5.1 Overview
The Delay Emulator screen (see Figure 40) configures the ATS-5X to act as a pass-through device with a programmable
time delay and attenuation. There are no measurements displayed on this screen. This function is intended to be used
to determine the effect of signal delay on other equipment.
Figure 40 – Delay Emulator Screen
2.7.5.2 Setup
The Delay Emulator function configures the line interface of the ATS-5X to be 4-wire fixed as a delayed repeater of the
receiver with no filtering. As such, the Setup screen does not show adjustments for these setup parameters (see Figure
41).
