Electrolux WE170V - Detergent Container and Hoses

28

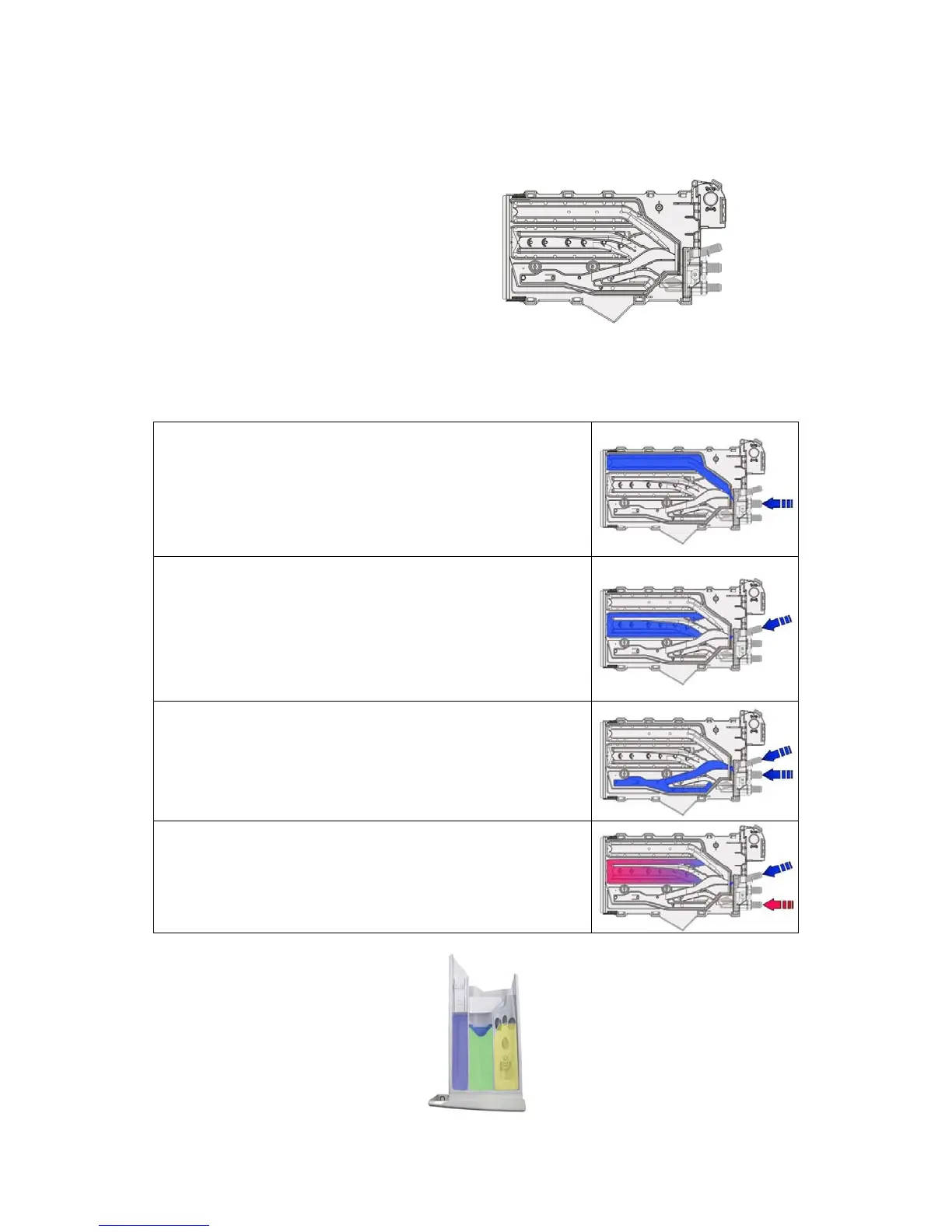

10.1 Detergent container
The water in the detergent c is filled through one solenoid valve for cold water (with one inlet, and 3 outlets)
and one for the hot water (with one inlet and one outlet);
 Upper part of detergent cointainer
10.1.1 Operating principle
a
b
c
Water fill to pre-wash compartment
(pre-wash solenoid)
 The detergent in compartment “a” is loaded at the start of the
pre-wash phase.
Water fill to wash compartment
(wash solenoid)
 Compartment “b” is used to contain the detergent loaded at
the start of washing.
Water fill to conditioner compartment
(pre-wash and wash solenoid valves)
 Compartment “c” is used for the conditioner, which is loaded at
the start of the final rinse. The pre-wash and wash solenoid
valves are activated simultaneously.
Hot water filling
(hot water solenoid)
 The hot water solenoid valve is activated to fill water into the
washing compartment “b” together with the cold water.
