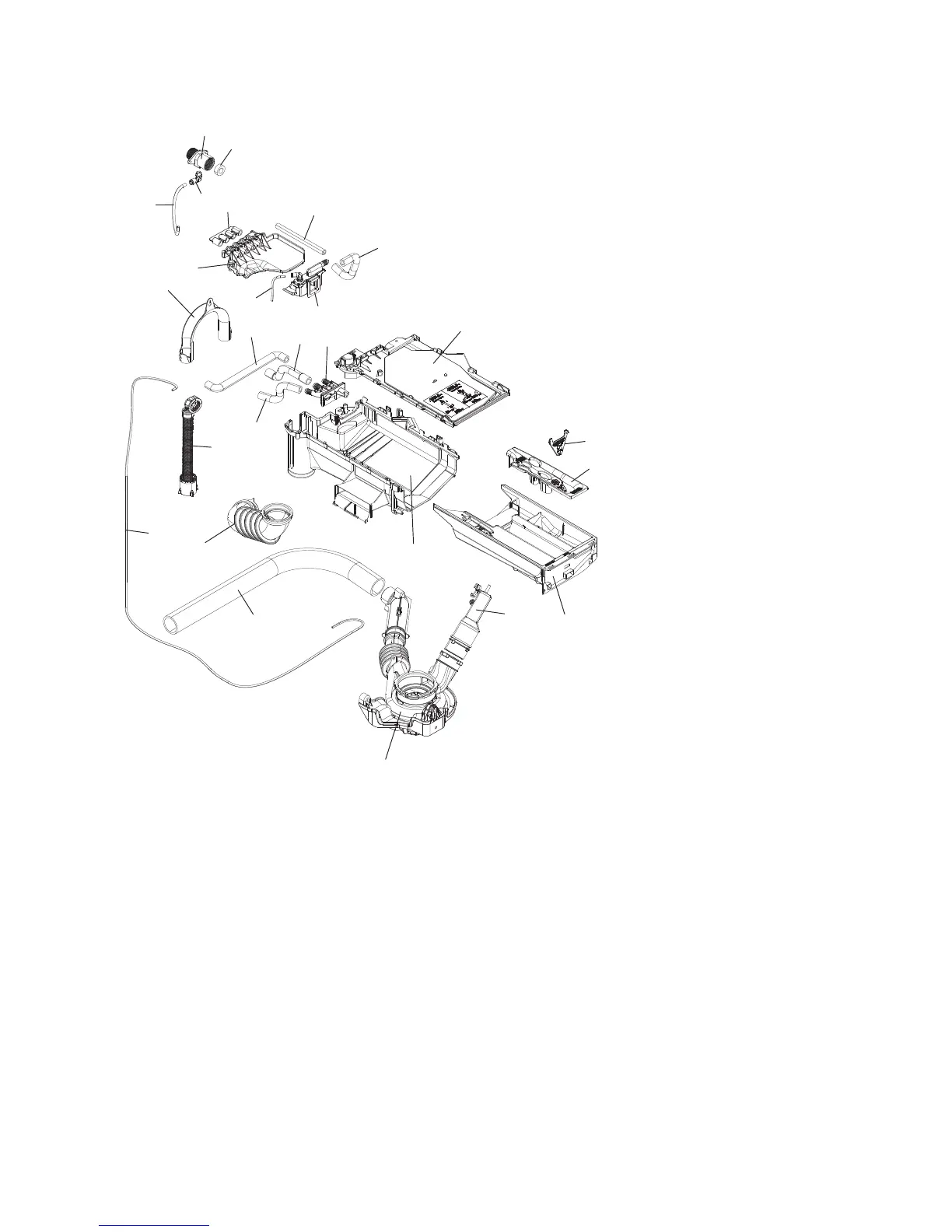

10.2 Detergent container and hoses - WE170V
1
2
3
3
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1. Drain valve
2. Air chamber
3. Hose
4. Support
5. Detergent container
6. Distribution pipe
7. Detergent drawer
8. Siphon
9. Flap powder/liquid detergent
10. Upper part
11. Hose connection
12. Connection for liquid detergent
13. Plug
14. Nipple
15. Gasket
