13 External liquid supply connection

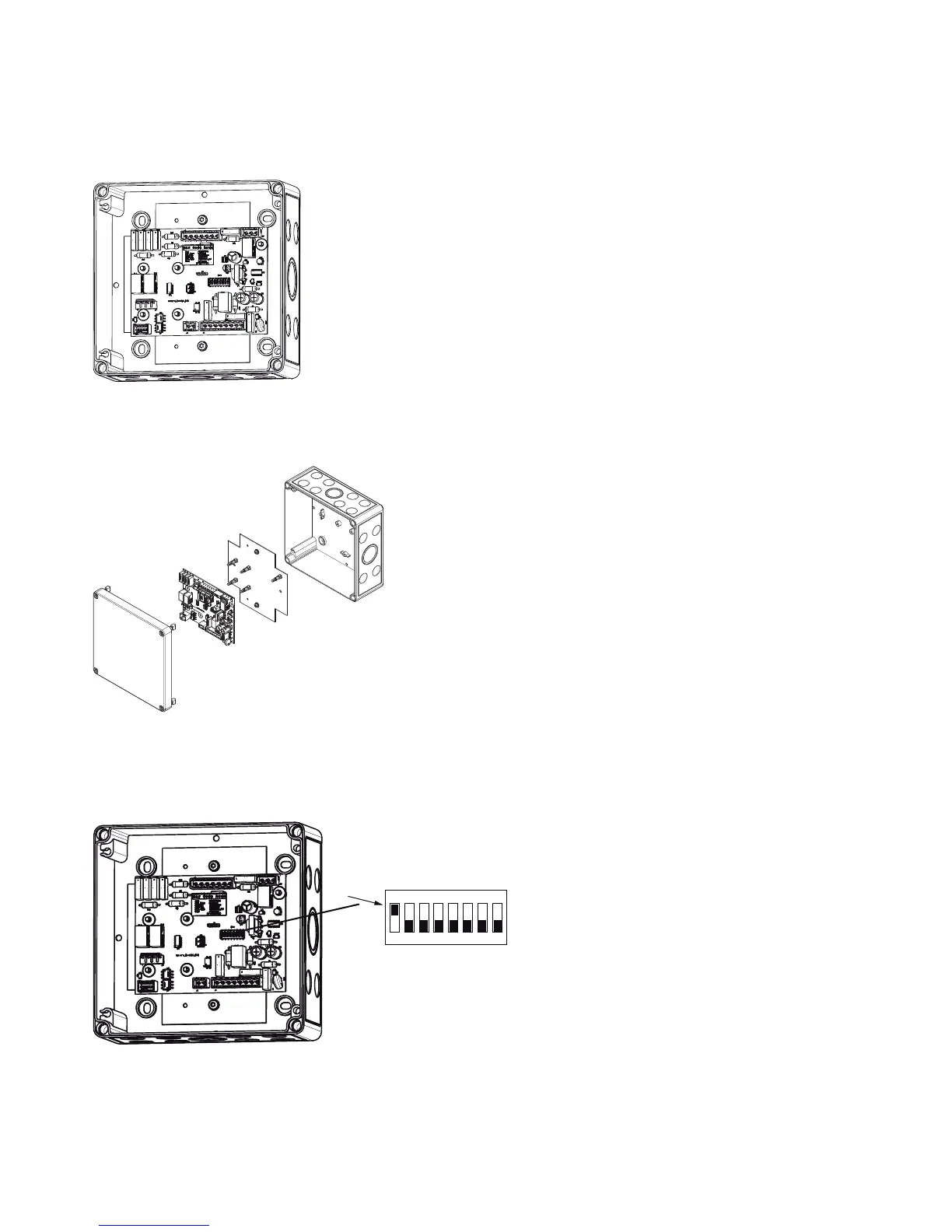

13.1 Replacement of the external liquid supply I/O board
Disconnect the power to the appliance.
Demount the top of the “box”.
Demount the external liquid supply I/O board from the “box” and mount the new one.
Remount the top of the “box”.
13.2 Setting of the dip switches
Disconnect the power to the appliance.
To activate the external liquid supply: Dip switch 1 on the external liquid supply I/O board shall be set in ON position.
ON
1 2 3 4 5 6 7 8
