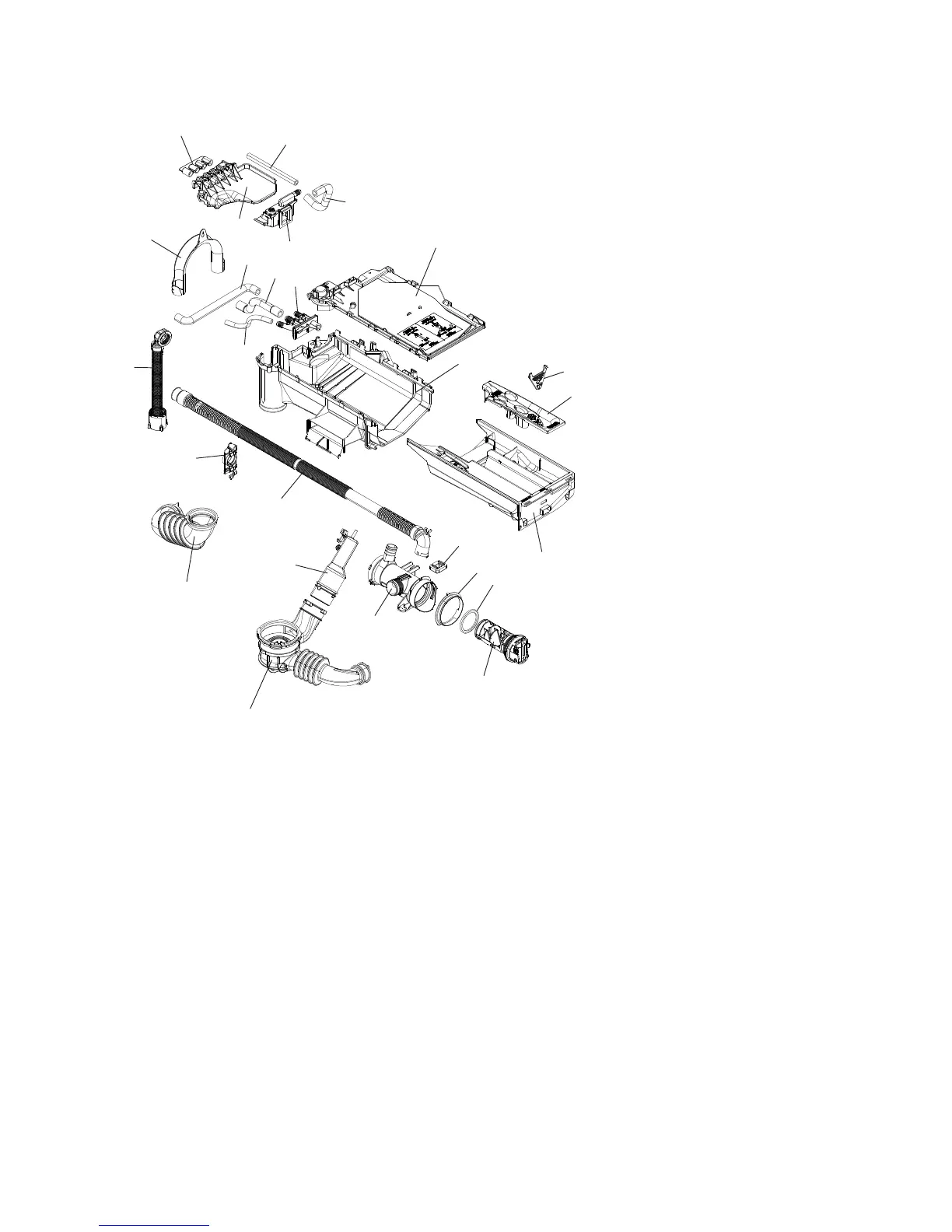

10.3 Detergent container and hoses - WE170P
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1. Drain housing
2. Air chamber
3. Hose
4. Hose clamp
5. Support
6. Pump housing
7. Gasket
8. Cushion
9. Filter
10. Seal
11. Detergent cointainer
12. Distribution pipe
13. Detergent drawer
14. Siphon
15. Upper part
16. Hose connection
17. Connection for liquid detergent
18. Plug
19. Flap powder/liquid detergent
