When repositioning the inverter in its seat, pay attention that the hook is
inserted in its position in the crosspiece.

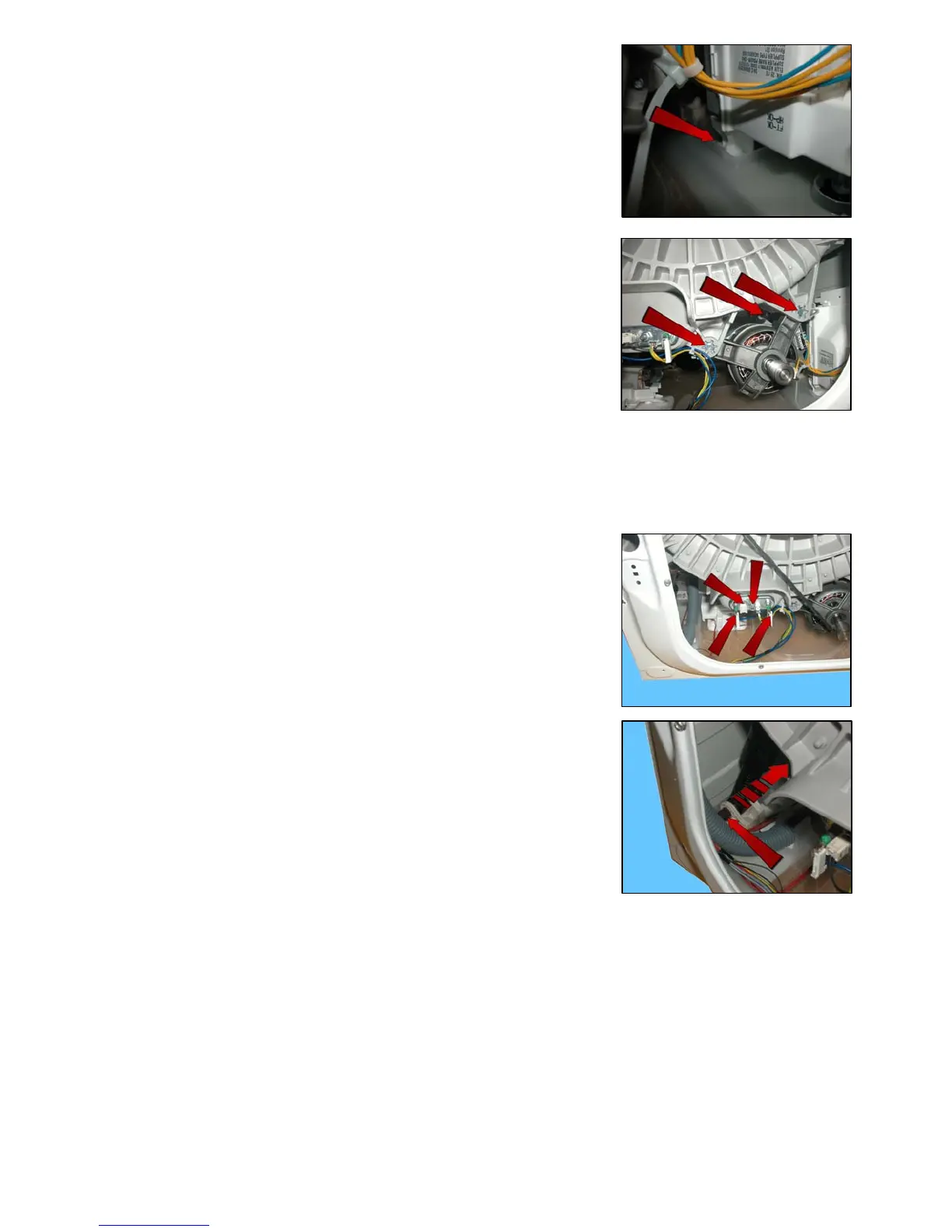

12.6.4 Motor
Remove the back panel.
Remove the belt.
Disconnect the connectors: for the power supply and earthing.
Loosen the two front fastening screws (1) and the rear ones (2).
When reassembling, restore the connections.
If the clamp securing the wiring to the motor breaks, replace it with a new one.
Tighten the screws at a torque of 5 Nm.
12.6.5 Heating element
Remove the back panel.
Disconnect the connectors of the heating element (1) and NTC probe (2).
Loosen the nut (3) and pull it out.
Tighten the nut at a torque of 4 Nm.
12.6.6 Rear shock absorber
Remove the back panel.
To take the pins out of their seats, push the locking tooth and at the same time
remove it with pliers.
Perform the same operations for the other pin.
Take the shock absorber out.
