3 Control panel
3.1 General characteristics

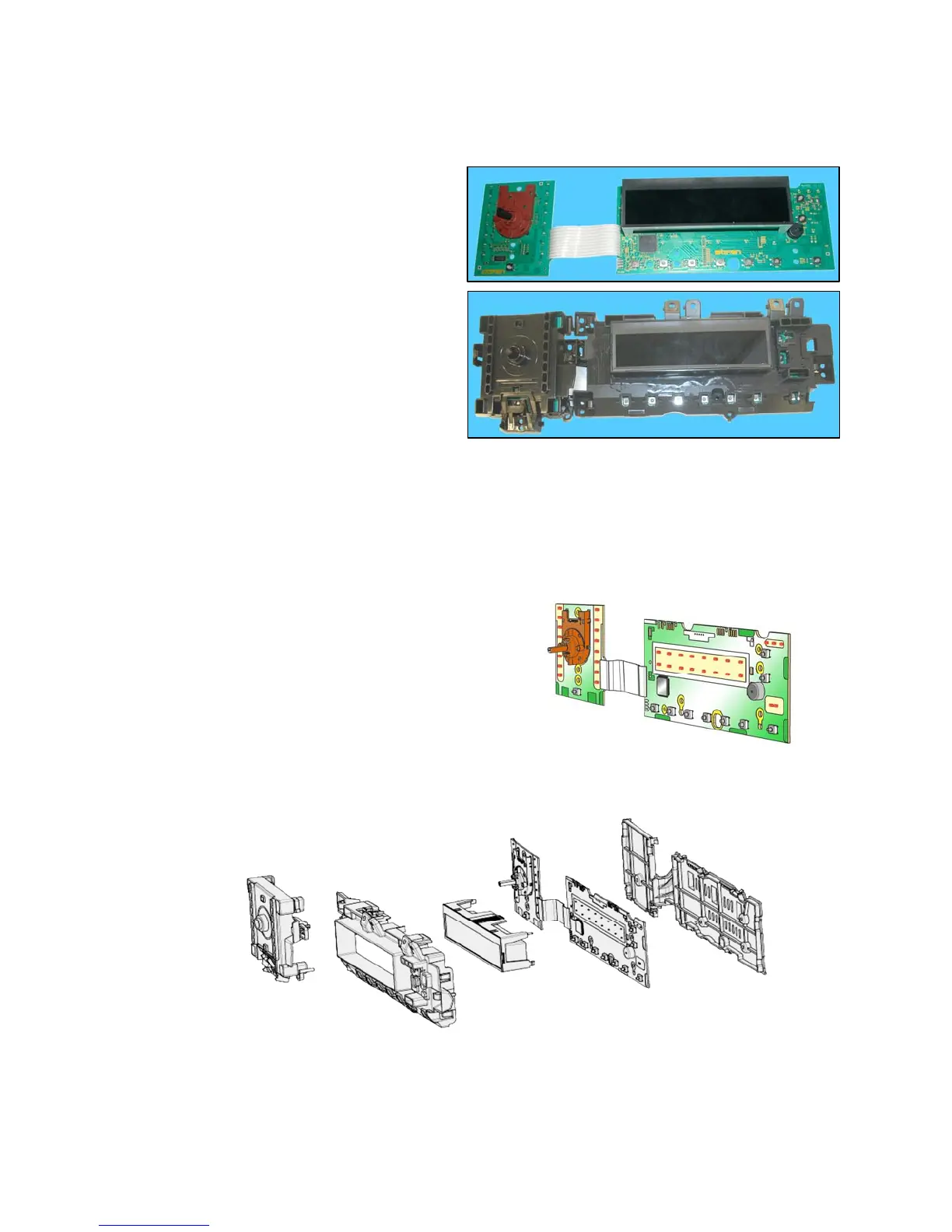

The control/display circuit board, inserted in
a plastic box, secured to the control panel
(the figure illustrates: the display board with
the side socket in which the selector is
fixed, connected together by a flat cable,
and the display board assembly).
The main circuit board is positioned at the rear of the appliance, receives commands from the display
board, powers the electrical components as well as communicating with the motor control board
(Inverter).
Positioning of LEDs and buttons
Display board assembly, exploded view
1. Selector board protection
2. Display board protection
3. LCD display
4. Display board and selector board
5. Rear protection
1
2
3
4
5
