10.10.2 Replacement of drain valve
Disconnect the power to the appliance.
Demount the top panel.
Demount the control panel.
Demount the front panel and door.

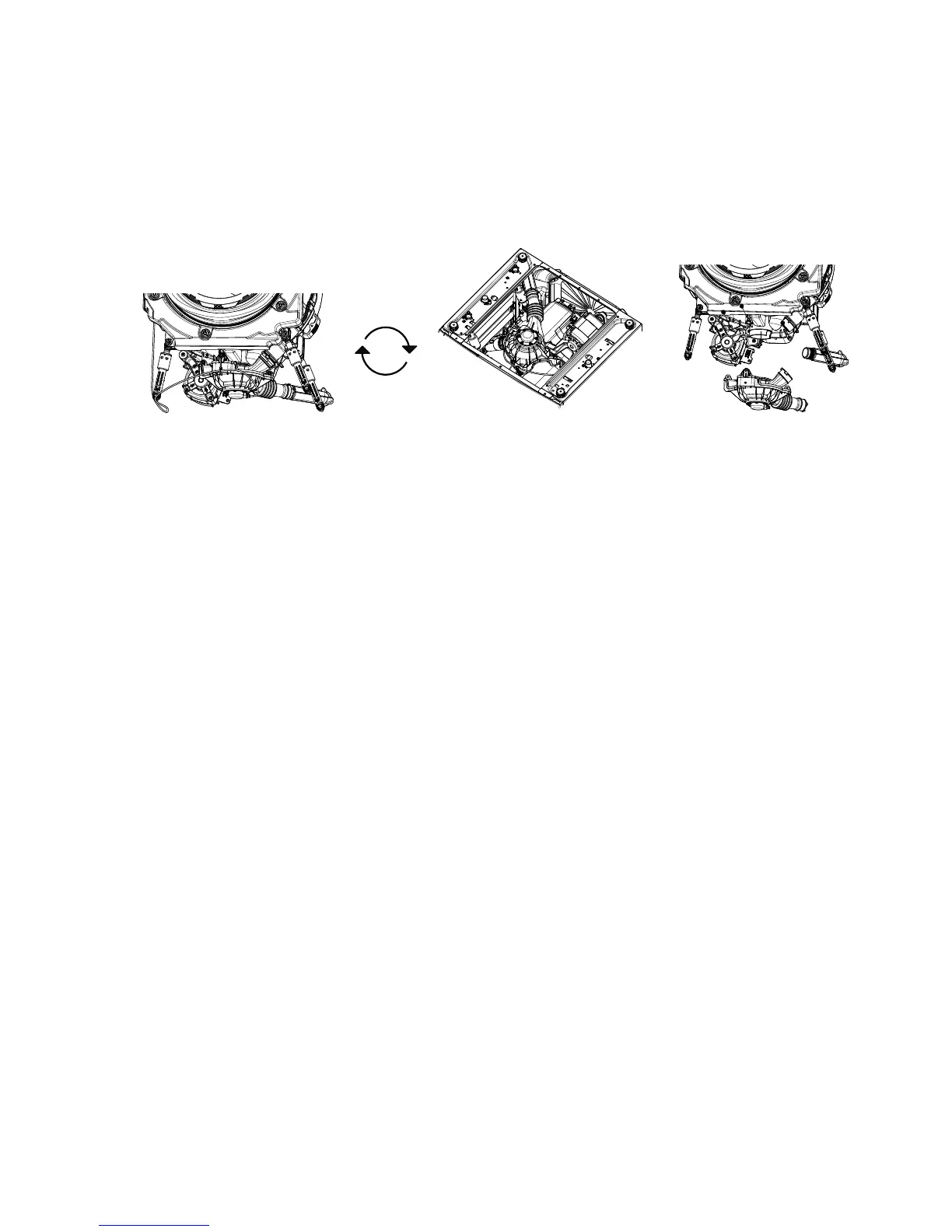

Loosen the hose clamps and demount the air chamber from the drain valve.
Remove the hose from the valves nipple for water supply. (Press the orange ring and pull out the hose at
the same time).
Loosen and unscrew the three retaining screws of the valve and demount the drain valve.
Mount the new drain valve (and air chamber) and tighten the screws.
Mount the hoses. Tighten the hose clamps.
Remount the panels and door.
