10.6 Washing unit
The washing unit is made up of:
A back casing (1) and a front casing (2), welded together to form the welded tub. Inside this is the drum (5)
(made of stainless steel) with the three blades (6) (in carboran) snap-fastened to the drum.
To balance the unit during the washing movements and during the spin phases two counterweights are used
on the appliance: one at the front (3) and one at the top (7).
The bellow seal (4) is fixed at the front.
The washing unit is suspended by two coil springs attached to the top crossbar, and the oscillations are
dampened by three shock absorbers, two on the right and one on the left (looking straight at the front of the
appliance).

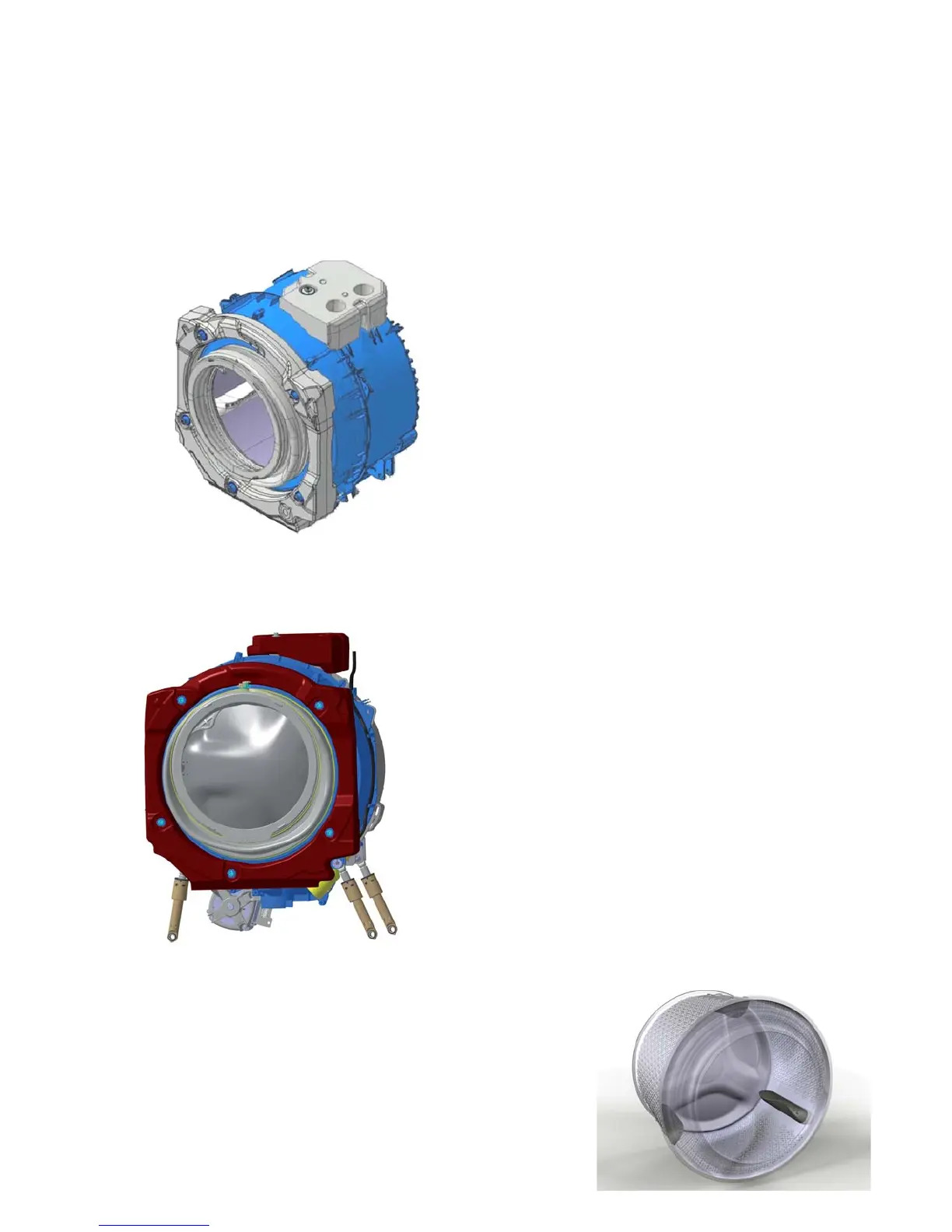

Drum with three blades inside.
