Elegoo Centauri - Page 18

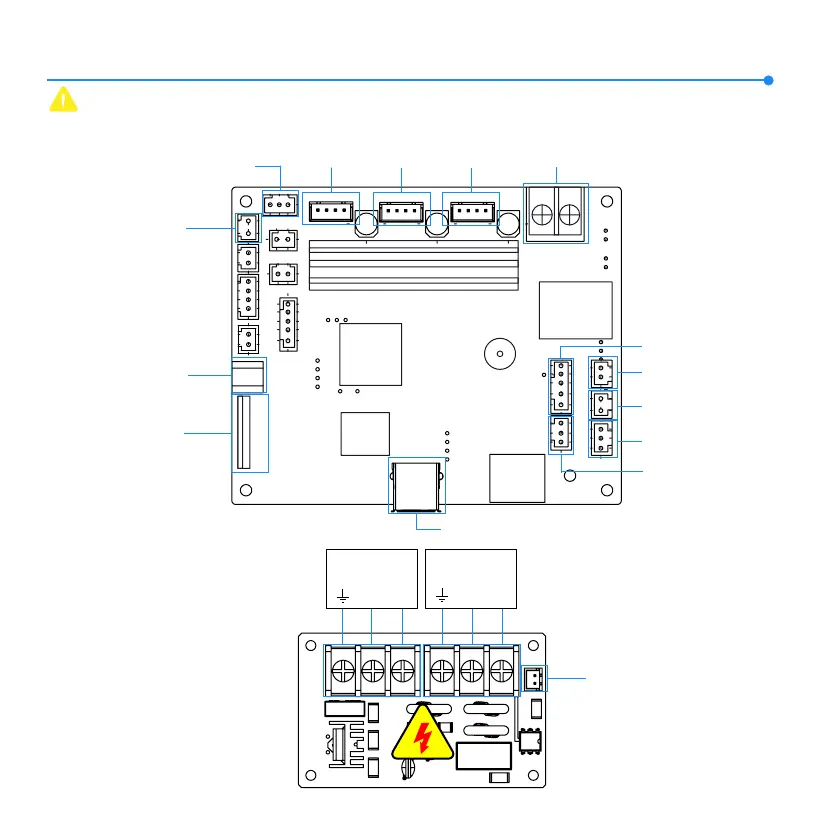

Mainboard Circuit Wiring Diagram
Type-C Interface
(24 V)
Screen Ribbon
Cable Interface
Chamber
Temperature
Filament Detector
Z-Axis
Motor
Y-Axis
Motor
X-Axis
Motor
USB Drive Port
Leveling Module
Heated Bed Temperature
Heated Bed Control
Interface
Mainboard Fan
Z-Axis Optical
Limit Switch
16
AC Power
Output
Heated Bed
Control Signal
L N
LN
AC Power
Input
24 V Power
Input Interface
Type-C Interface (24 V): It is strictly prohibited to directly connect this port to a computer
or external devices, as it may result in damage.
+
-
