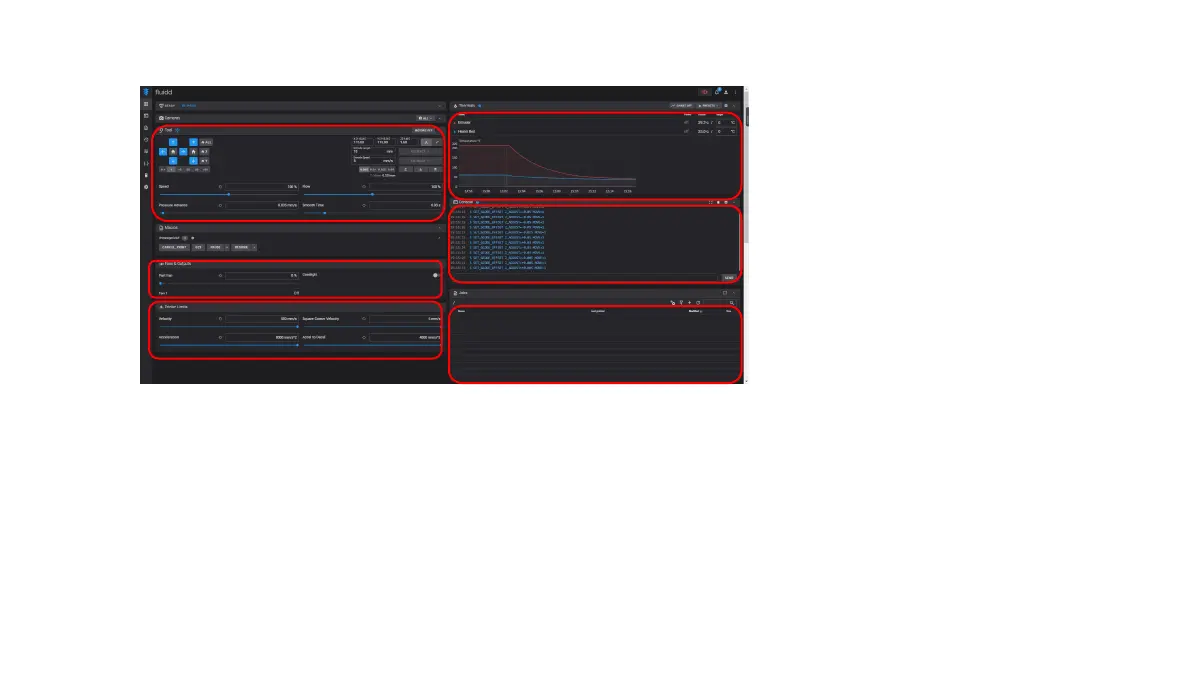

NOTE: Upon the successful access of the Printer’s Network Interface, you will be presented with the following screen.
Temperature Display
Console Display
Task List
Printer Limit
Movement
Control
Fans and Output
Movement Control: Provides the ability to control the movement of the printer’s print head along each axis of
control, and can set compensation following the leveling process.
Fan and Output: Provides the ability to control the printhead Fan and to turn Lighting (on/off).
Printer Limit: Sets the maximum acceleration control of the printer, normally there’s no need to modify.
Temperature Display: Displays the Printer’s temperature(s) and heating status. This also provides controls for the
preheating of the printhead temperature as well as the heated bed temperature.
Console Display: Shows G-code commands executed and allows for manual G-code to be sent to Printer.
Task List: You can drag the G-code file of the ELEGOO Cura slicer to the task list here for Printing.
