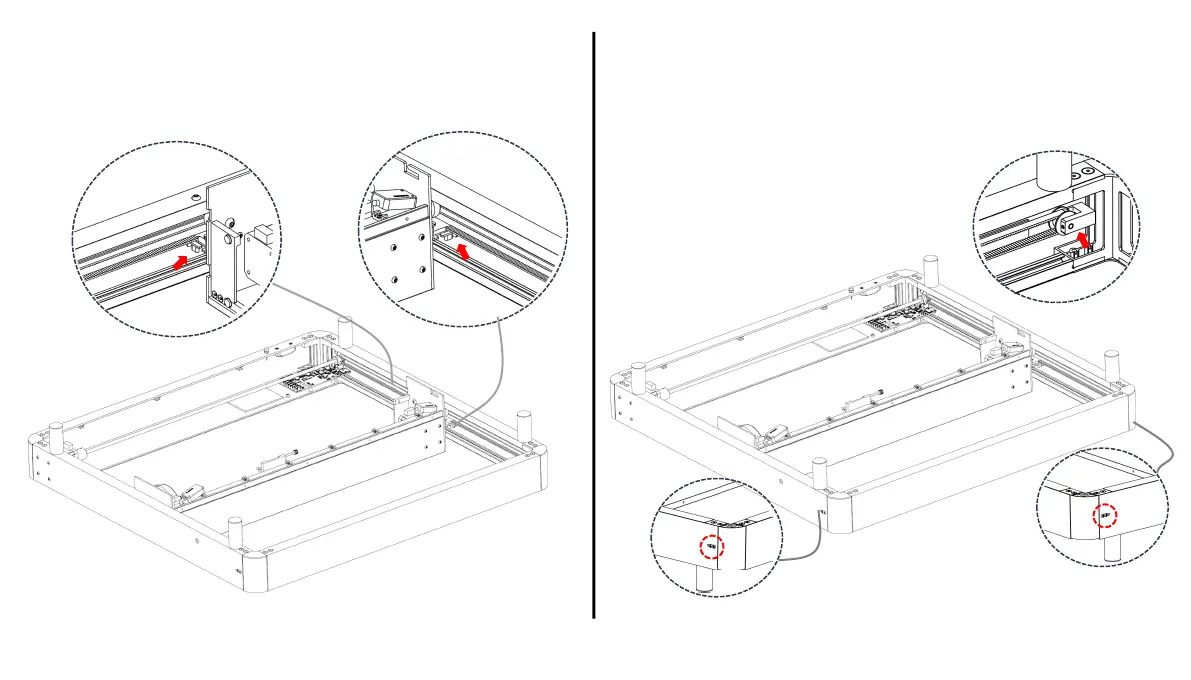

Ø Timing Be lt Installati on:
Install the timing belt with the tooth surface facing up into the slot.
Ø Timing Be lt Adjustmen t:
⑧⑦
Loosen the side screws and tighten the adjustment slider of the
timing belt towards one end. Then resecure the screws to lock it in
place.
