7.6.2 Targets
Using the electronic position indicators DD52R-E-RF, target positions can be sent
from the PLC to the indicators through the control unit. When a target is set, the
behaviour is the same as described in cap. 7.5.

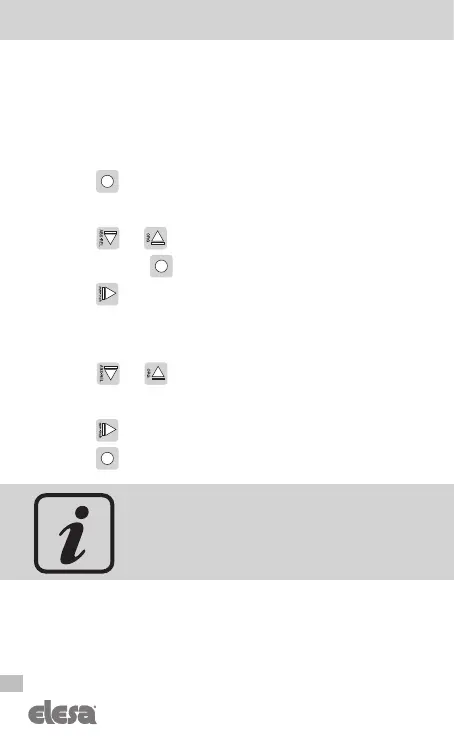

8 Programming mode
Press the key for 3 seconds to enter the programming mode.
Depending on the setting of PASS parameter (see cap. 8.6.4), the system may
require to enter by using a password.
Press the key and to scroll through the list of parameters and select the
required one by pressing .
Press the key to exit the programming mode.
The programming mode is automatically dropped after 30 seconds of inactivity.
8.1 Programming parameters with numeric values
Press the key and to increase or decrease the flashing digit. Consider
the arrow direction because the effect of the key depends on the display direction
(see diSPL parameter in cap. 8)
Press the key to select the next digit.
Press the key to confirm the value and go back to the list of parameters.
The numeric values of the parameters must be inserted
taking into account the selected unit of measure.
When a parameter is changed from its stored value, by confirming it, the display
shows the message CHAnGd .
When exiting in the programming mode, the parameters are stored in the internal
memory. If a parameter is changed, the display shows the message StorE
