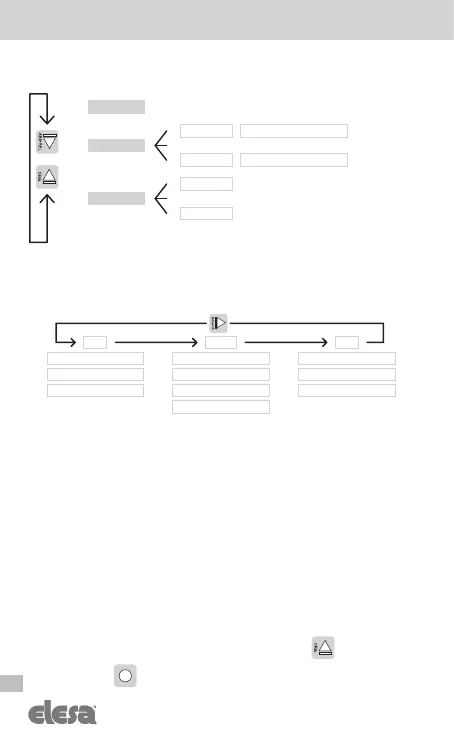

8.4 Target menù tree
StoP_t
*
LOAd_t
LtG 01
...
LtG 32
PrOG_t
PtG 01
...
See Cap. 8.5
PtG 32
See Cap. 8.5
Scrolling direction
* Displayed only if a target position is set
8.5 Parameter value
The parameter value depends on the unit of measure and resolution set.
The value may change according to the resolutions of mm and inch.
Es.
If rES mm = 1 and rES inch = 0.01
The max parameter in mm is -25399 ÷ 25399 because if we convert the
value in inch 25399 / 25.4 = 999.96 which is the max value visible on the display
with the res inch = 0.01
In case the parameter is 25400 it is not possible to show the converted value
because 25400 / 25.4 = 1000.00
8.6 Additional features
8.6.1 Reset
To reset the device to the factory setup:
- select the voice rESEt from the main menu (see cap. 8.3)
- change the value from no to YES by pressing the key
- press the key to confirm
mm
-99999 ÷ 99999
Inch
deg
-9999.9 ÷ 9999.9
-999.99 ÷ 999.99
-0393.7 ÷ 0393.7
-393.70 ÷ 393.70
-3937.0 ÷ 3937.0
-9999.9 ÷ 9999.9
-999.99 ÷ 999.99
-99999 ÷ 99999
-99.999 ÷ 99.999
