5 Installation and Commissioning
42
5 Installation and Commissioning
The corrector (logger) is a compact device built into a tough plastic enclosure with IP66 protection
rating. The device is intended for installation in potentially explosive atmospheres. It has been
approved for either ZONE 0 or ZONE 1 environment, depending on the specific modules installed
in the device, as specified in Section 2.
In addition to completely enclosed electronics, the enclosure contains power supply batteries and
a digital pressure transducer with M12x1.5 threaded joint according to DIN W 3861 for connecting
a pressure pipe.
At the bottom of the cabinet are metal cable glands for connecting the input and output signal
cables with the possibility to connect the cable shielding conductively.
5.1 Dimensions of the Device
5.1.1 ELCOR corrector

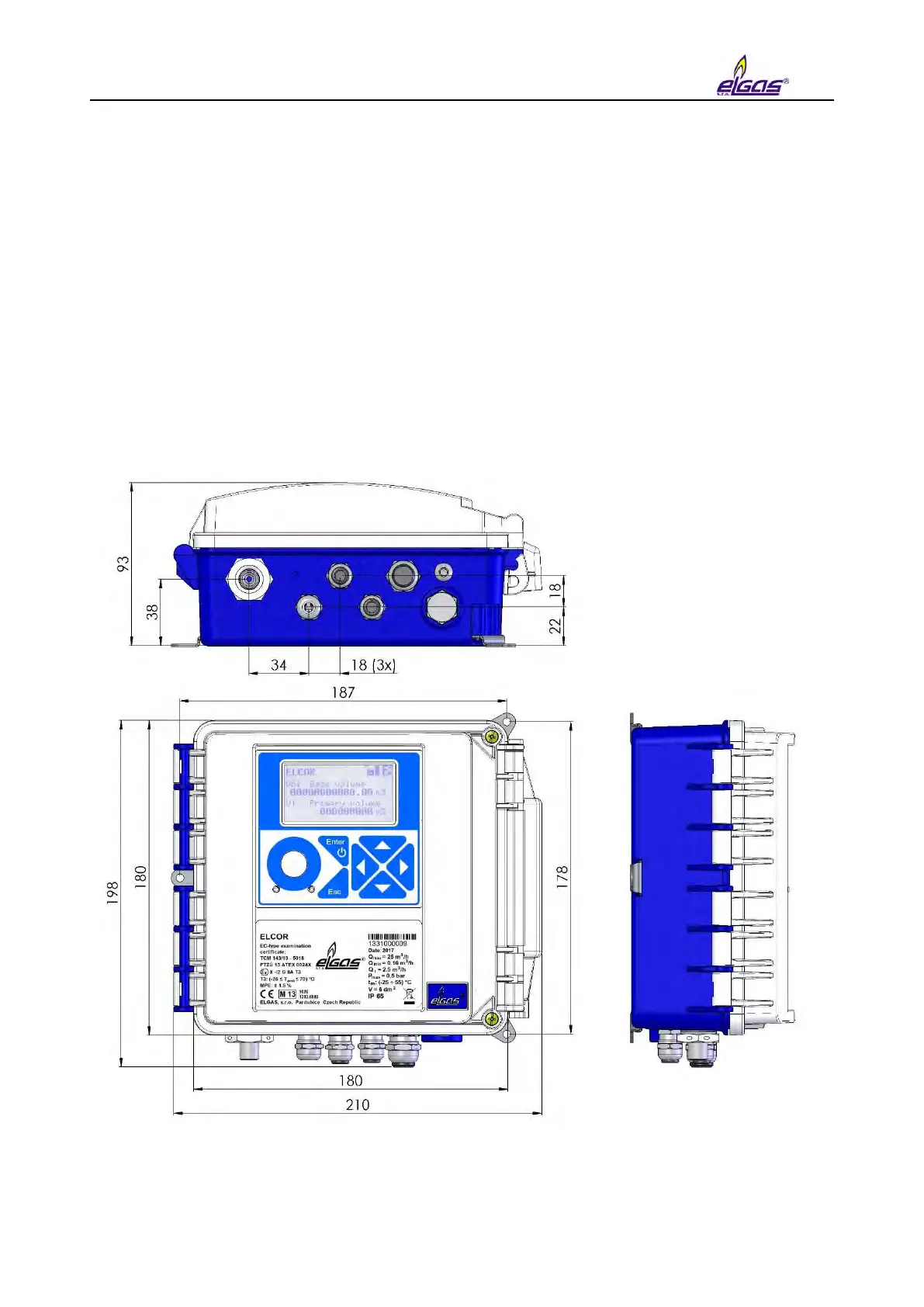

Fig. 1 ELCOR device dimensions
