5 Installation and Commissioning
85

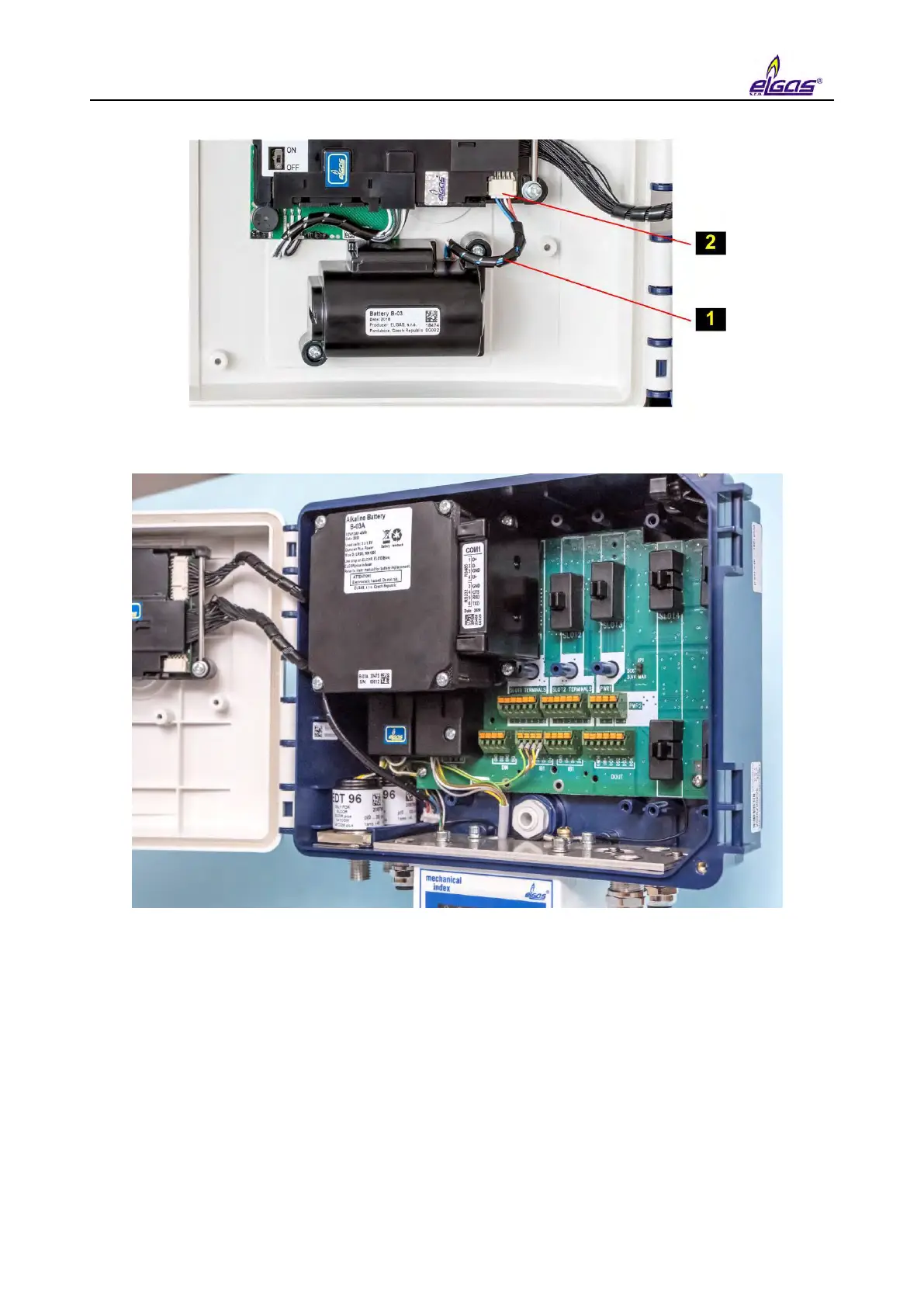

Fig. 41 Connecting the device battery
Fig. 42 ELCORplus indexer with alkaline battery B-03A located above slot 0
5.7.2 Connecting the Modem Battery
The version of the device with internal GSM/GPRS modem can be delivered with a disconnected
modem battery.
5.7.2.1 ELCOR
When commissioning the device, the battery outlet (HB-03, HB-04, etc.) with the connector must
be plugged into the modem module connector.
