Elgas ELCOR - Installation of Elcorplus Indexer on Gas Meter; Fig. 12 Installation of ELCOR on Piping Using a Special Holder; Fig. 13 Installation of ELCOR on ELGAS Radial Turbine Gas Meter

To Next Page

To Previous Page

5 Installation and Commissioning

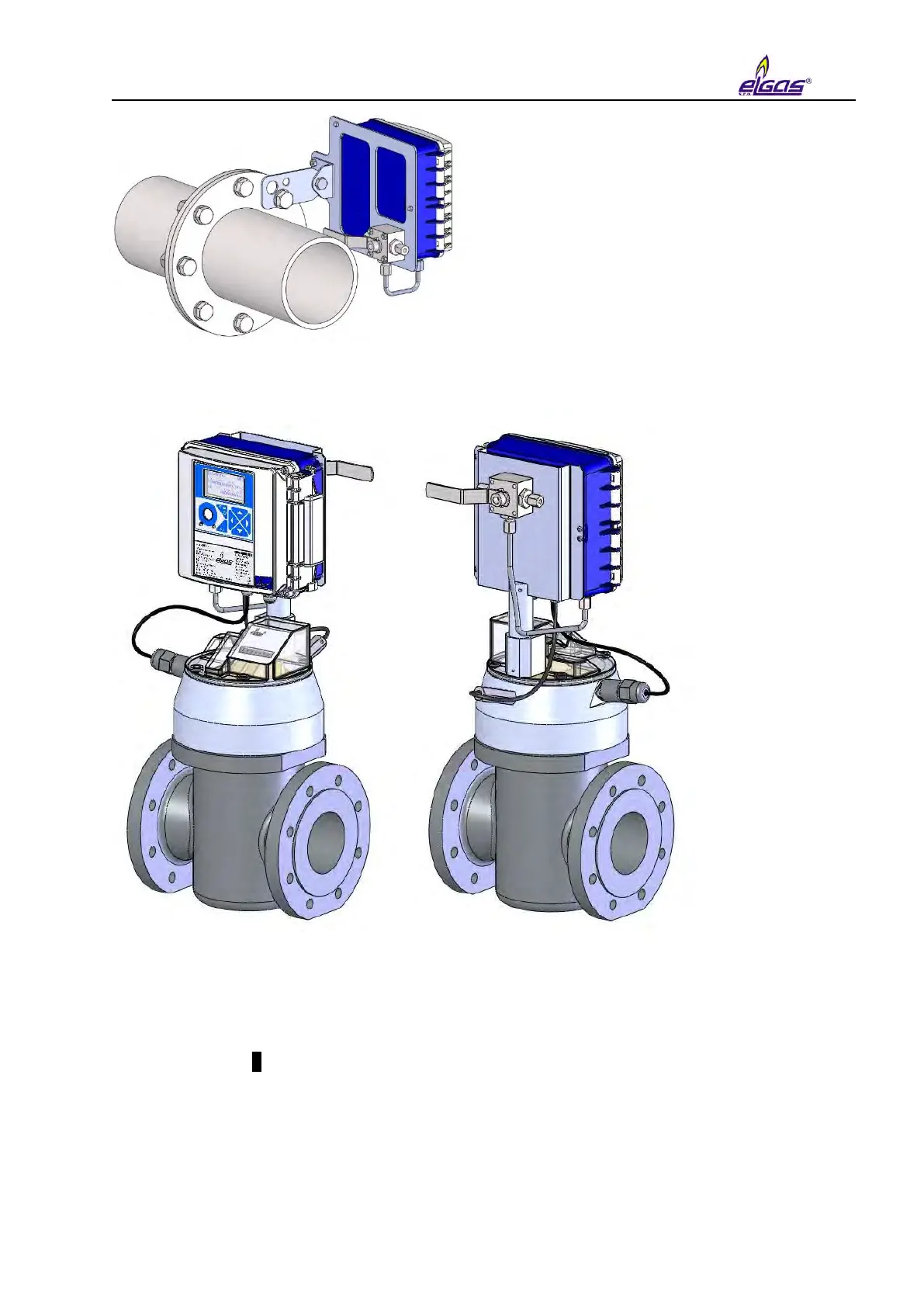

Fig. 12 Installation of ELCOR on piping using a special holder

Fig. 13 Installation of ELCOR on ELGAS radial turbine gas meter

5.4.3 Installation of ELCORplus indexer on gas meter

Place the gasket 1 on the gas meter flange and then the ELCORplus indexer, which is

supplied as a complete set including the attached mechanical indexer. Screw it down to the

meter. The necessary mounting parts (see Fig. 14 are supplied with the device as a

mounting kit.
