5 Installation and Commissioning
71
5.6.2.3 LF Gas Meter, Dual Channel

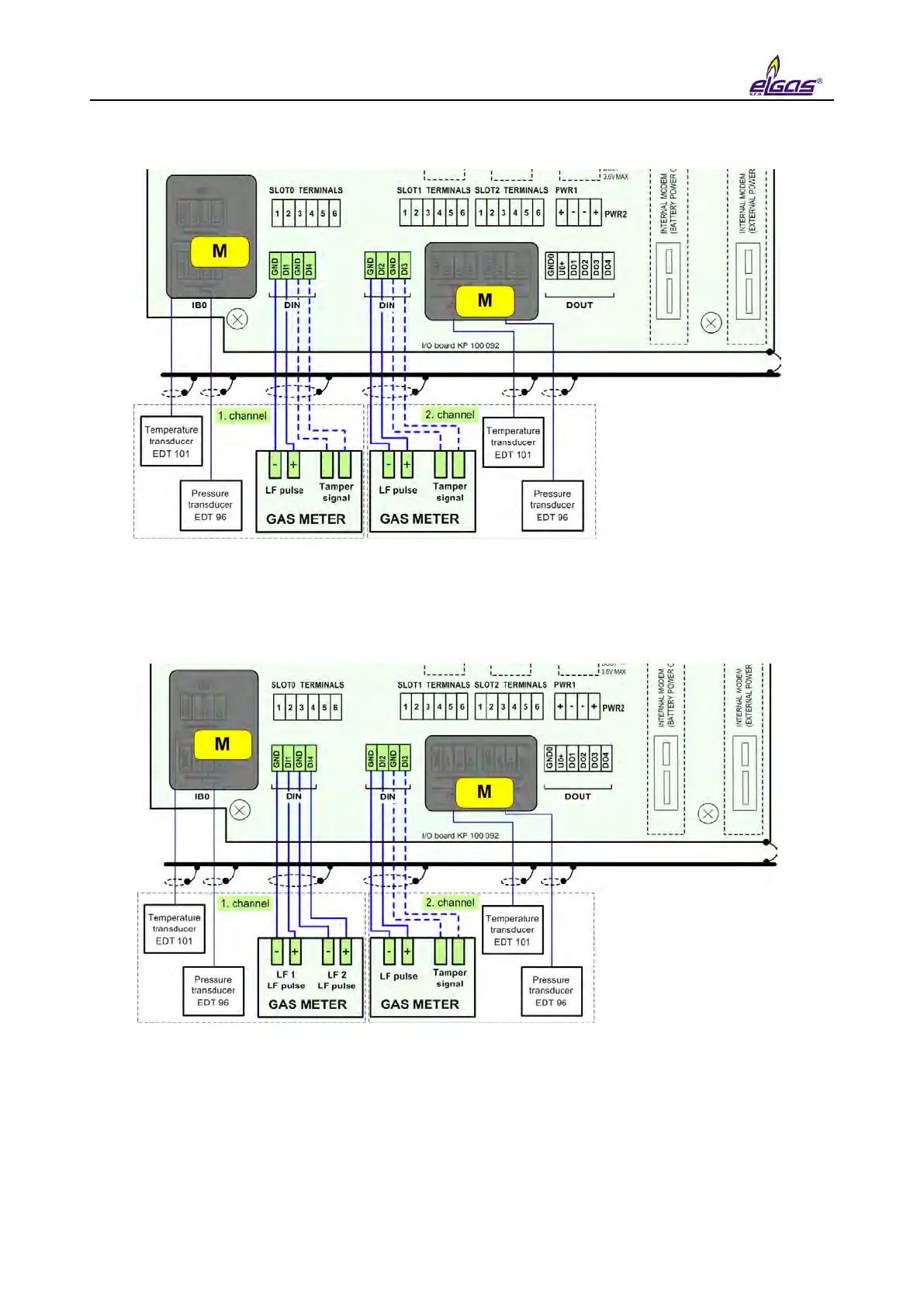

Fig. 26 Connecting LF gas meters to ELCORplus (dual channel)
Fig. 27 Connecting LF gas meters to ELCORplus (dual channel, gas meter with the detection of
rotation direction)
