5 Installation and Commissioning
51

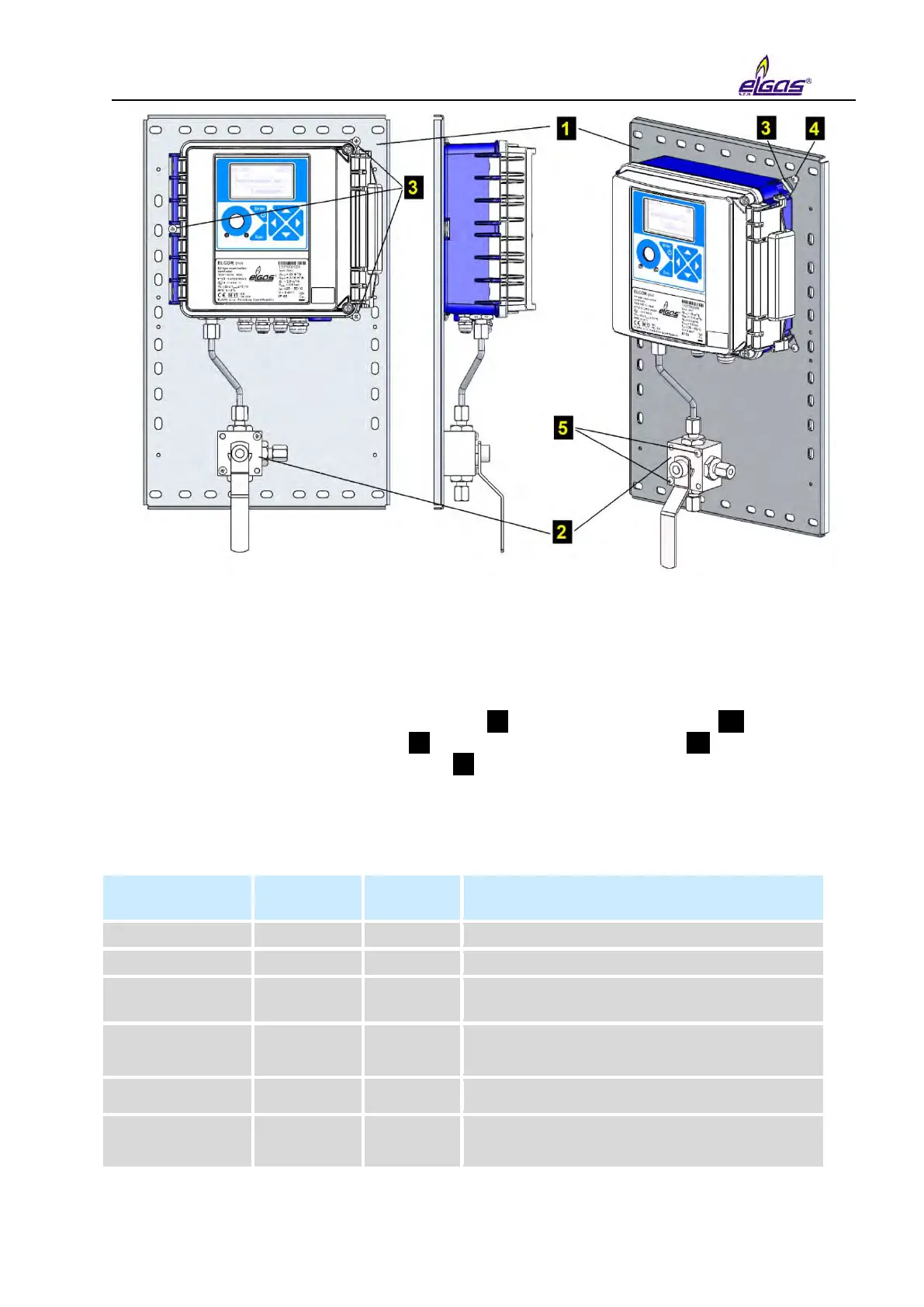

Fig. 9 Mounting of the ELCOR convertor on the mounting plate
3. Attach a 6 mm connection pressure tube to the pressure sensor in the bottom of the
cabinet to connect the 3-way valve. To attach the tube to the pressure sensor, use a
cutting ring with M12x1.5 ERMETO nut.
4. Screw the holder under the three-way tap 9 onto the mounting plate 4 into the
prepared position with two M4x10 8 screws. Attach a three-way tap 5 to this metal
holder using 2 screws M4x40 ISO 7045 7 Check that the pins and the position of the
three-way tap control lever are correctly oriented before installation. Connect the free end
of the connection tube to the three-way valve outlet (for more details, refer to Section
5.4.4).
5. Check the tightness of the connections.
Mounting plate
designation
Designed
for device
Size [mm]
Note
KP 107 85
ELCOR
250 x 250
For mounting without 3-way valve
KP 107 86
ELCOR
250 x 350
Allows for mounting 1 pc of 3-way valve
KP 107 87
ELCOR
For mounting on turbine gas meter ELGAS
(see Fig. 13)
KP 107 88
ELCOR
For pipe flange mounting with 3-way valve
mounting option (see Fig. 12)
KP 108 85
ELCORplus
300 x 250
For mounting without 3-way valve
KP 108 88
ELCORplus
300 x 400
Allows for mounting up to 2 pcs of 3-way
valve (for dual channel corrector)
Table 1 Mounting plates supplied
