5 Installation and Commissioning
72
5.6.2.4 HF Gas Meter

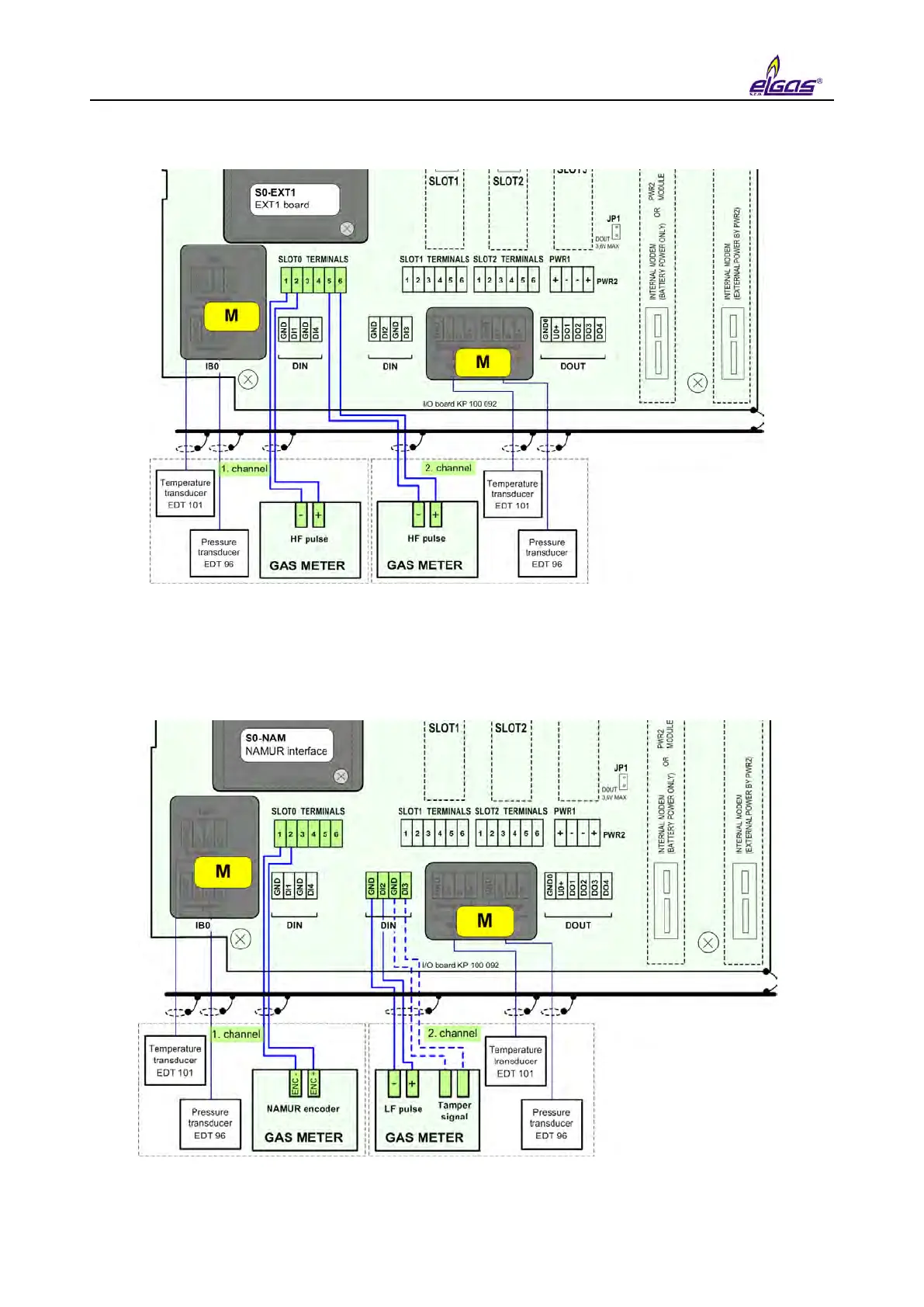

Fig. 28 Connecting HF gas meters to ELCORplus (dual channel)
5.6.2.5 Gas Meter with Encoder
Fig. 29 Connecting gas meter with NAMUR encoder to ELCORplus
