Elgas ELCOR - Connecting Binary Outputs; Fig. 31 Connecting Digital Outputs Via B-DO Separation Barrier (ELCOR); Table 6 Cables Recommended to Connect Binary Outputs to the B-DO Module

5 Installation and Commissioning
74
5.6.4 Connecting Binary Outputs
ELCOR – with 2 digital outputs available, DO1 and DO2 terminals on the DOUT terminal block.
ELCORplus – with 4 digital outputs available, DO1 to DO4 terminals on the DOUT terminal block.
Table 6 Cables recommended to connect binary outputs to the B-DO module

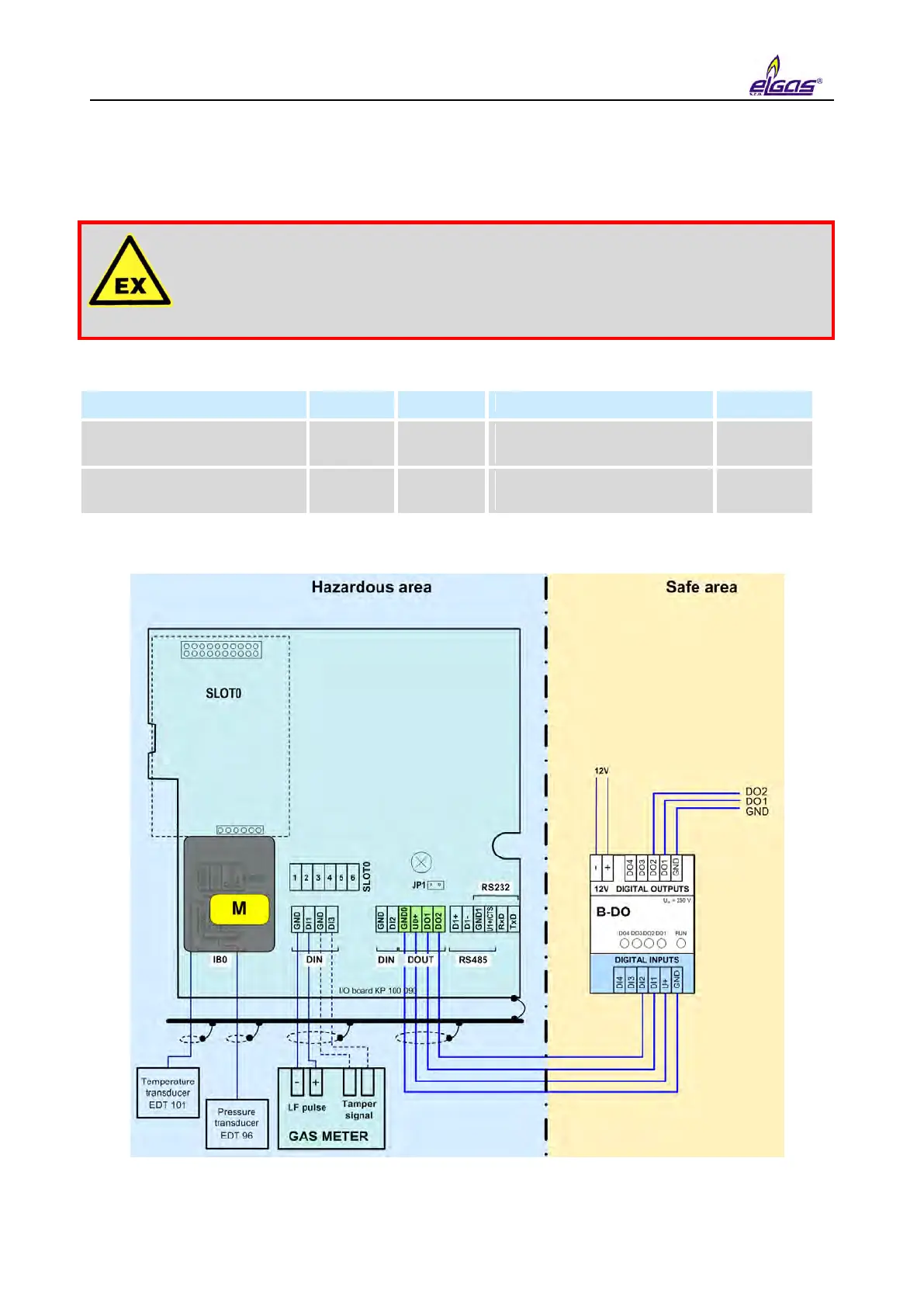

Fig. 31 Connecting digital outputs via B-DO separation barrier (ELCOR)
ATTENTION!
The signals of the DOUT terminal block are intrinsically safe, which is why
common devices must be connected via a separation safety barrier (B-DO
module).
Connection
Cable
Entry
Recommended type of cable
Cable Ø
Digital output (single)
3-wire
shielded
PG7
Unitronic LiYCY 3 x 0.25
Lappkabel
4.7 mm
Digital output (four times)
6-wire
shielded
PG7
Unitronic LiYCY 6 x 0.25
Lappkabel
6.0 mm
