Eliwell 210 L Series User Manual

FC BASIC User Manual
10/24
3.6.1

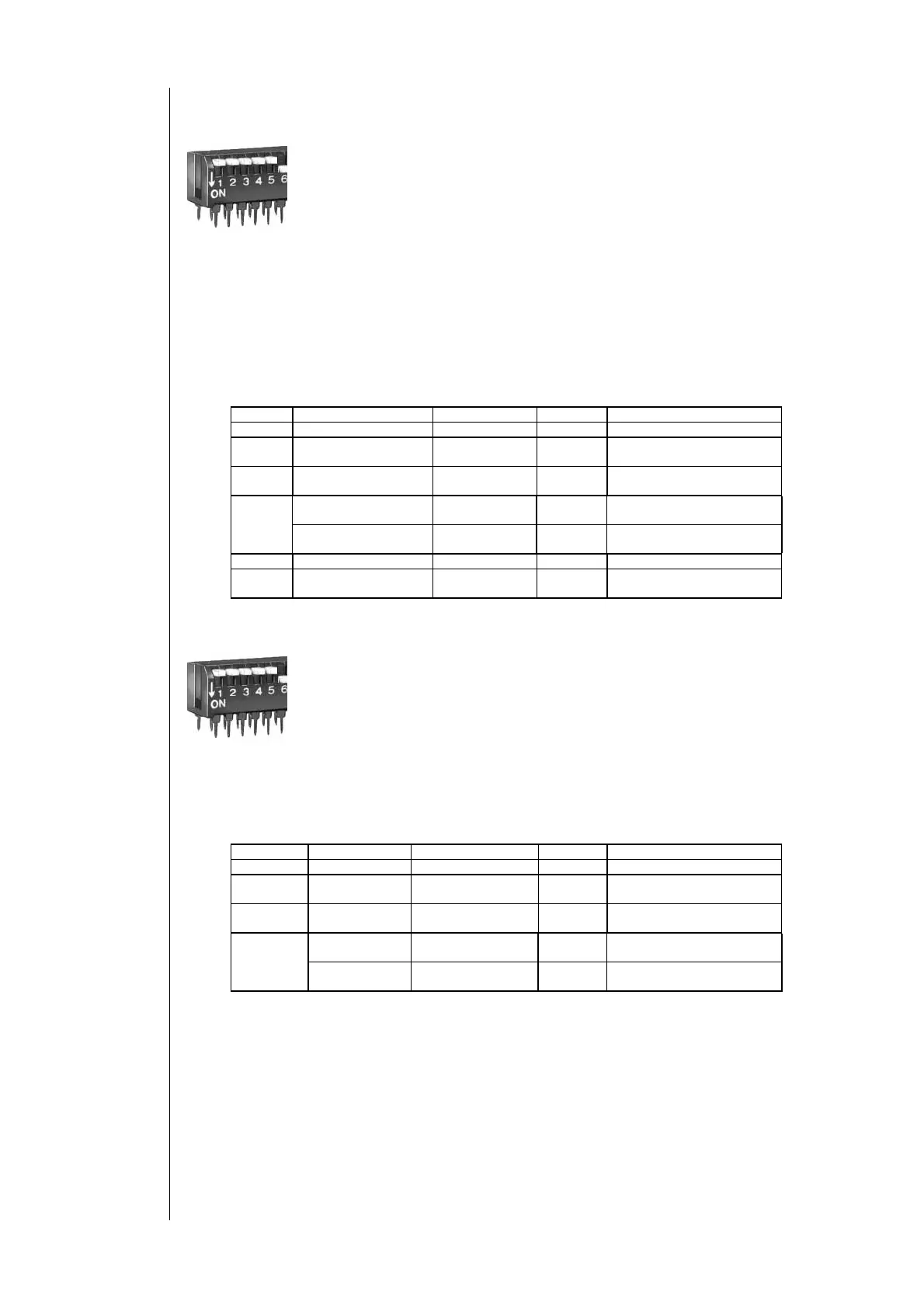

Dip switch – universal models
* In models with INTEGRATED, AUTOMATICALLY ADJUSTING electric heaters, the HOT function is not available.
**The Dip-Switch default setting (factory pre-set) is the following:
DIP nr. Description On Off default (factory pre-set)**
6 Air sensor used Local Remote On
5 Fan status in cooling Thermostatic
demand
Always ON Off
4 Dead Zone value
Hysteresis value
5°K
2°K
2°K
1°K
Off
Electric heater control Regulation Integrated Off 3
time for Hot Start HS=0
(not delayed)*
delayed
2 2- or 4-pipe system 4-pipe 2-pipe Off
1 Electric Heater presence Present Not
present
Off
3.6.2
Dip switch –specific models
In models with INTEGRATED, AUTOMATICALLY ADJUSTING electric heaters, the HOT function is not available**
The Dip-Switch default setting (factory pre-set) is the following:
DIP nr. Description On Off default (factory pre-set)**
4 Air sensor used Local Remote On
3 Fan status in
cooling
Thermostatic
demand
Always ON Off
2 Dead Zone value
Hysteresis value
5°K
2°K
2°K
1°K
Off
Electric heater
control
Regulation Integrated Off 1
time for Hot
Start
HS=0
(not delayed)*
delayed
To access the DIP switches, please proceed as follows:
First separate the connector base plate from the main interface, by using a tiny screwdriver. Insert the screwdriver into the
appropriate holes (at the side of the housing), wrest gently till both parts are separated.
Turn the back of the main interface towards you and you will see the DIP switches mounted onto the PCB.
<IMG INFO>
141,7
113,6
0
2
0
0
-1
127,3
106,7
