FC BASIC User Manual
13/24
5 TEMPERATURE CONTROL FUNCTIONS
Depending on the model and available selections, FC Basic may be operated in the following modes:
• COOL (summer operation)
• HEAT (winter operation)
• AUTO (automatic summer – winter selection)
Cooling: this is “summer” operating mode; the machine is configured for cooling.
Heating: this is “winter” operating mode; the machine is configured for heating.
Auto: The machine is configured to switch automatically from cool to heat mode and vice versa. Depending on the
temperature detected by the water sensor (2-pipe system) or air sensor (4-pipe system or 2-pipe with INTEGRATED AND
AUTOMATICALLY ADJUSTING electric heaters).
The utilities controlled in the various operating modes are shown in the table below:
Mode Setting Utilities controlled
HEAT MANUAL
• Valve: water (for 2-pipe fan-coil), hot water (for 4-pipe fan-coil)
• Fan (3 manually set speeds)
• Electric heater (enabled by dip switch dip 1 – universal models only)
COOL MANUAL • Valve: water (2 pipes), cold water (4 pipes)
• Fan (3 manually set speeds)
AUTO AUTOMATIC Dynamic operation in the following modes:
• HEAT
• COOL
• “STAND BY” condition (Summer- Winter), on the basis of comparison of water
temperature with set point setting
• «OFF» (dead zone), depending on the difference between air temperature and set
point temperature.
Summer – Winter (Cool – Heat) operating mode may be set manually in models with a heating – cooling slider , locally
(operating mode slider) or remote(Remote Heating/Cooling).
The following regulation algorithms are available, depending on the model:
• Winter/summer (Heat / Cool)
• Dead zone with lateral band
In 2-pipe systems models with water sensor, operating mode is selected automatically in function of the temperature
detected by the water sensor:
• Cool (Summer) operation for temperatures of less than 15 C°
• Heat (Winter) operation for temperatures of more than 30 C°

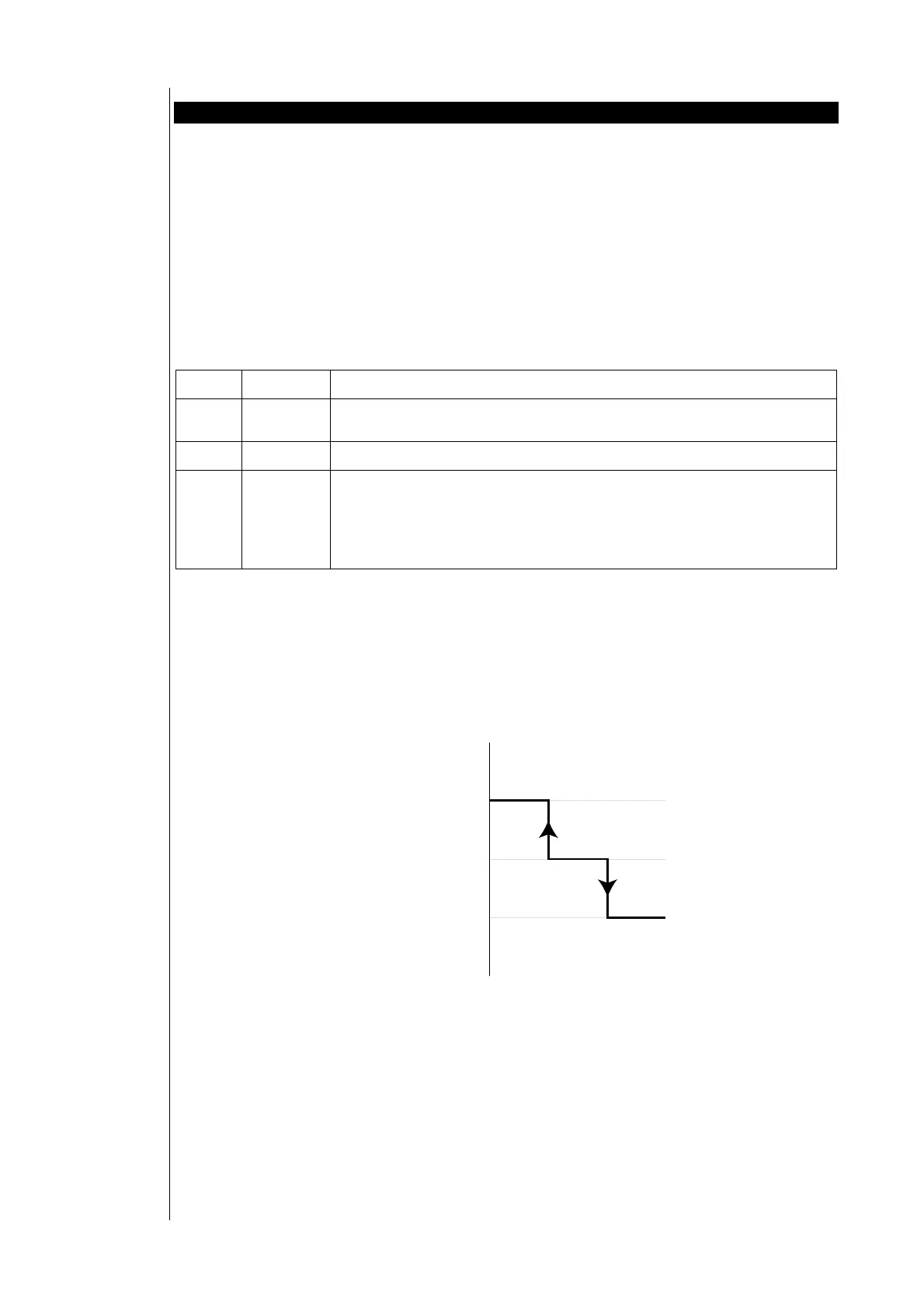

The automatic water temperature based change-over (SUMMER / WINTER) takes place as illustrated in the drawings below
and generates consent to the activation of available resources.
Operating modes
Cool
Heat
Auto
Operating modes table
Manual change
over
Automatic change
over
30
15
stand-by
cool./raff.
heat./risc.
SUMMERTIME
ESTIVO
WINTERTIME
INVERNALE
