FC BASIC User Manual
22/24
7 TECHNICAL FEATURES
7.1 Technical data
Wall mounted version
Typical Maximum Minimum
Power supply voltage 230V~ 253V~ 207V~
Power supply frequency 50/60 Hz 52/63 Hz 47/57 Hz
Maximum absorbed power 12W 12W 12W
Insulation class II II II
Protection grade IP30 IP30 IP30
Operating temperature 25C° 60C° 0C°
Operating humidity (non-condensing) 30% 90% 10%
Storage temperature 55C° 85C° -20C°
Storage humidity (non-condensing) 30% 90% 10%
• Digital outputs rating : 230V~ 5 (2)A
• Analogue inputs : 1 (+1) NTC probes;
• Assembly : wall mounted
• Housing: colour : Front : white
Base plate ; grey
• Connections : screw terminals – SAURO connector for wires
! max 2.5 mm² rigid cable;
! max 1.5 mm² flexible cable.

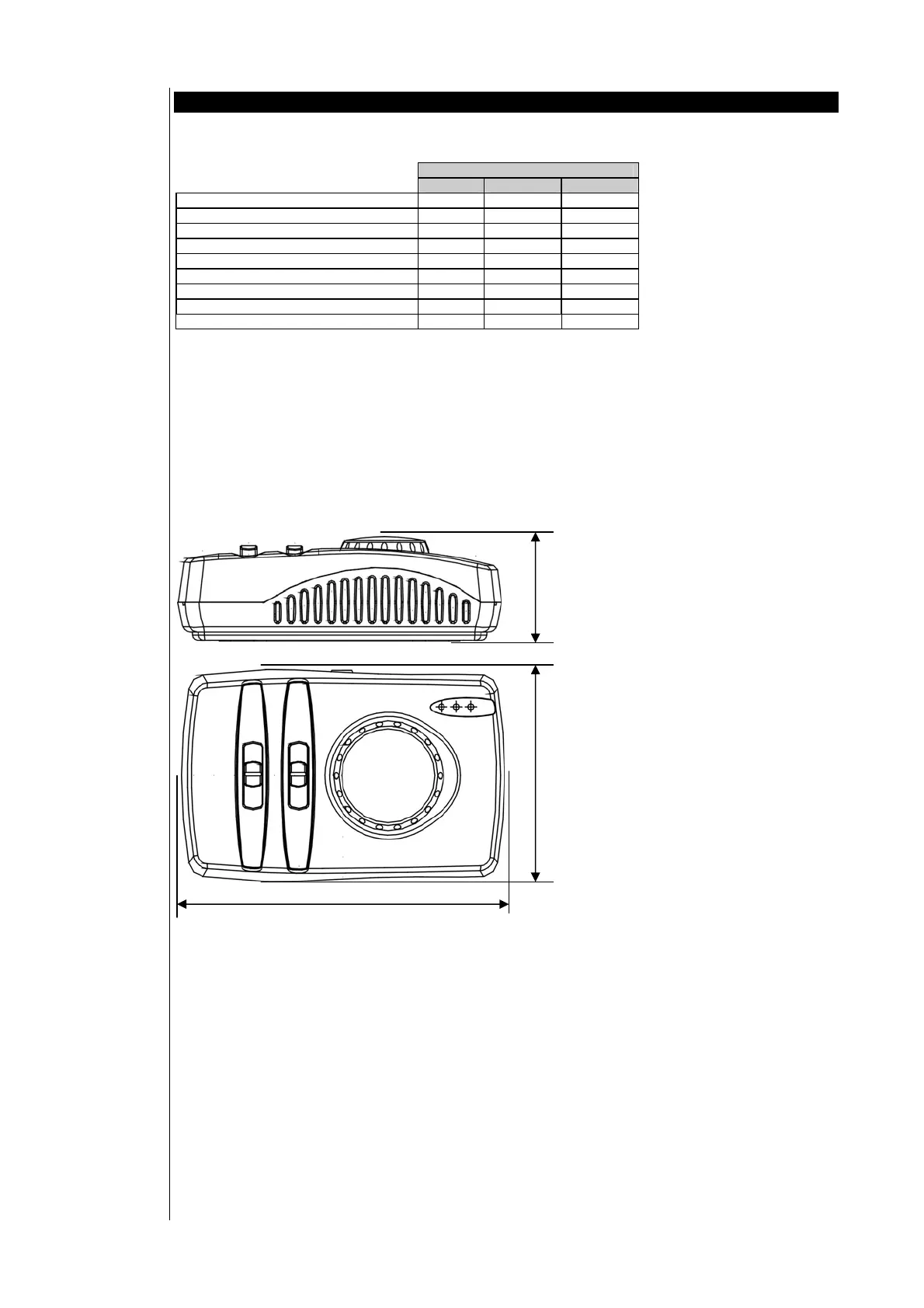

7.2 Dimensions
120x80x40 mm
7.3 Conformity declaration
The product complies with the following European Community Directives and standards:
73/23/EEC and subsequent amendments, in compliance with the following standards:
60730-2-9
89/336/EEC and subsequent amendments
60730-2-9
EMISSION: EN55014-1
IMMUNITY: EN55014-2
