FC BASIC User Manual
4/24
2 INTRODUCTION
FC BASIC is an electronic controller for 2-4 pipe fan-coils. It controls the fan and the valves that regulate water flow and
can also control a battery of electric heaters for winter operation.
A compact wall-mounted version is available which is easy to install and to wire.

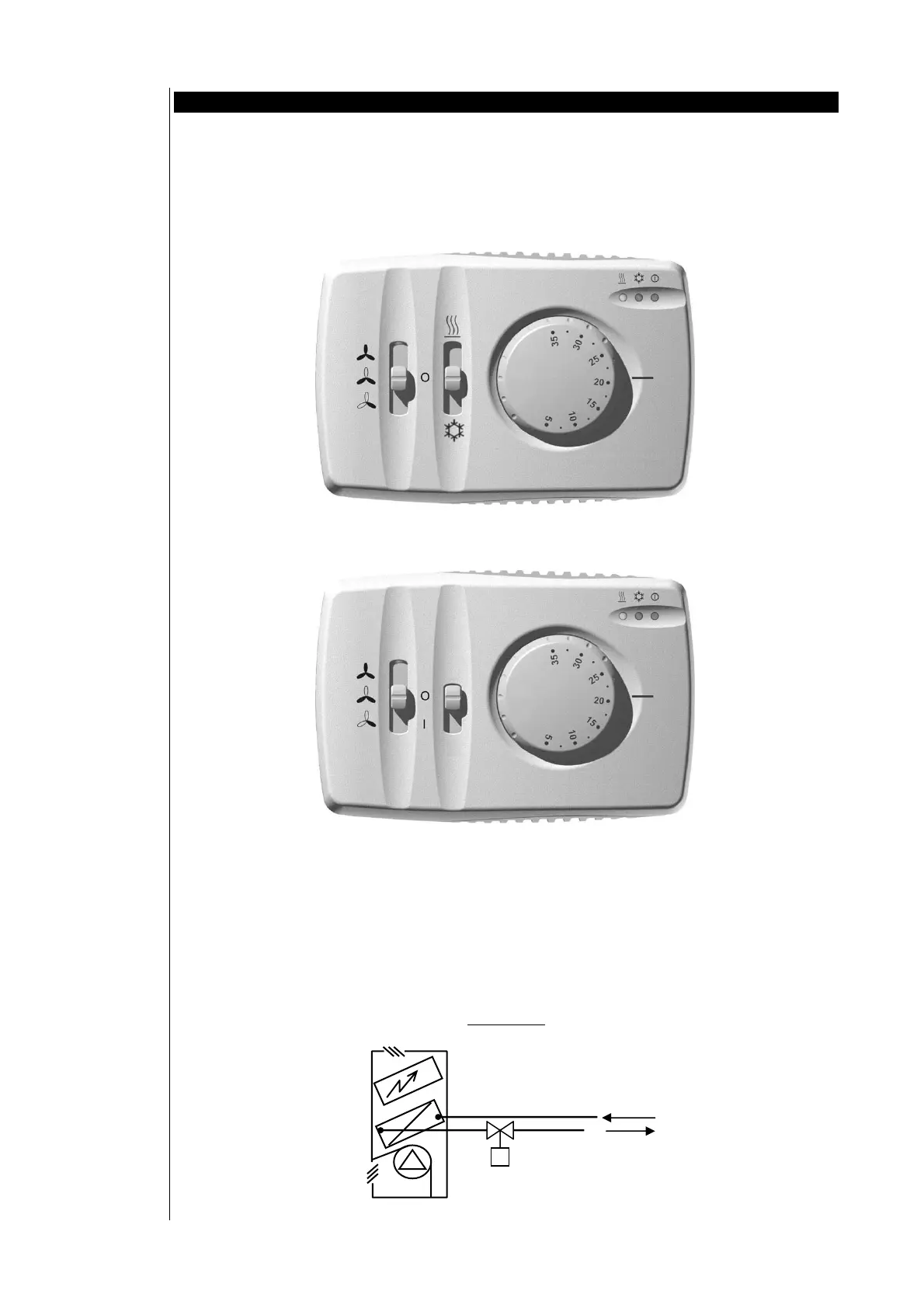

FC Basic
Interface F1
Interface F2
A knob on the panel is used to adjust the set point, and two slider switches are used to set
a) the mode
• for Interface F1 (heating/off/cooling)
• for Interface F2 (on/off)
b) the fan speed (low/medium/high).
Some models also feature a remote Heating/cooling control and an economy function.
2.1 Example of a Fan-coil installation
Typical 2 and 4 pipe fan-coil installations are illustrated below:
2 pipe fan-coil
Interface F1
Interface F2
2 pipe installation
Hot and cold water supply
Hot and cold water return
Additional
electric heater
Motorised valve
Water battery
