FC BASIC User Manual
18/24
5.2.3
REGULATION ALGORITHM IN HEAT MODE WITH SUPPLEMENTARY ELECTRIC HEATERS as integrated
source
5.2.4
REGULATION ALGORITHM IN HEATING MODE WITH SUPPLEMENTARY AUTOMATICALLY ADJUSTING
ELECTRIC HEATERS
In models with INTEGRATED AND AUTOMATICALLY ADJUSTING electric heaters, heating components are determined by
the temperature read by the water probe as well as always being subject to the consents programmed for this sensor.
With this configuration, the automatic change-over always takes place at the air probe temperature (Dead Zone). Setting

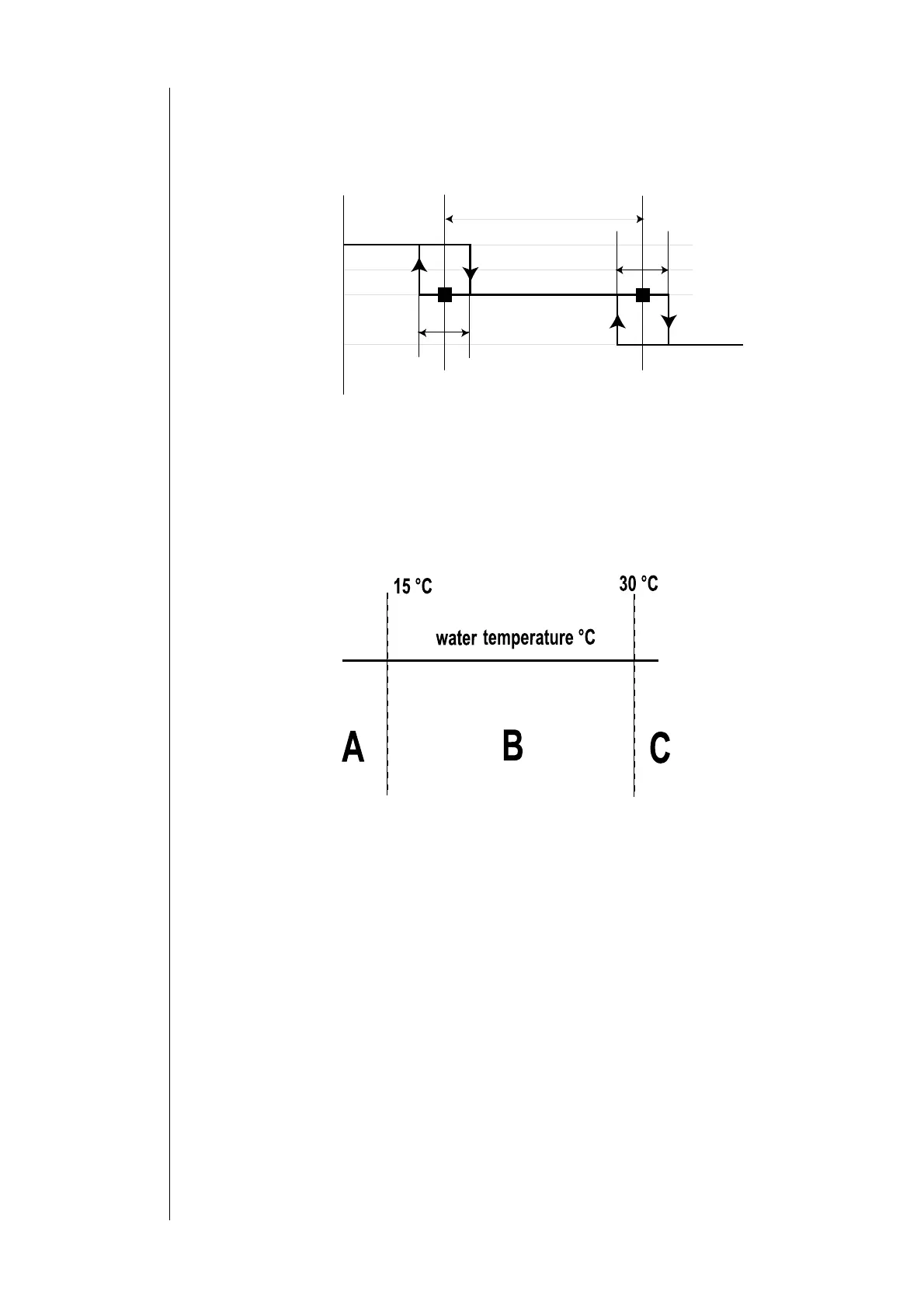

depends on water temperature, as shown in the following three examples:
N.B.: There is a fixed hysteresis of1°C between temperatures of 15°C and 30°C to prevent constant flucturations
between A and B and between B and C.
For example, for rising temperatures, the switch from A to B takes place at 15.5°C whilst for falling temperatures,
the switch from B to A takes place at 14.5°C. The same happens at the 30°C threshold (real thresholds of 29.5
and 30.5°C).
Regulation
algorithm with
supplementary
electric heaters
valvola/valve
esistenze elettriche
n integrazione
set-point
room temp.
temp.ambiente
hysteresis/isteresi
OFF
hysteresis/isteresi
band/banda
ntegrated
lectric heaters
