FEED LIFTING CAM POSITION
Check:
1. Turn the flywheel to make needle point position above needle plate.
2. At this time, teeth of feed dog are required to keep same height with of
needle plate surface (ref. Fig.1).
Adjustment:
1. Remove rear cover (see page 5).
2. Loosen feed lifting cam set screw A (Hexagon M5x5).
3. Turn feed lifting cam B up to same height of feed dog teeth and needle plate
surface.
4. Tighten set screw A.
A
B

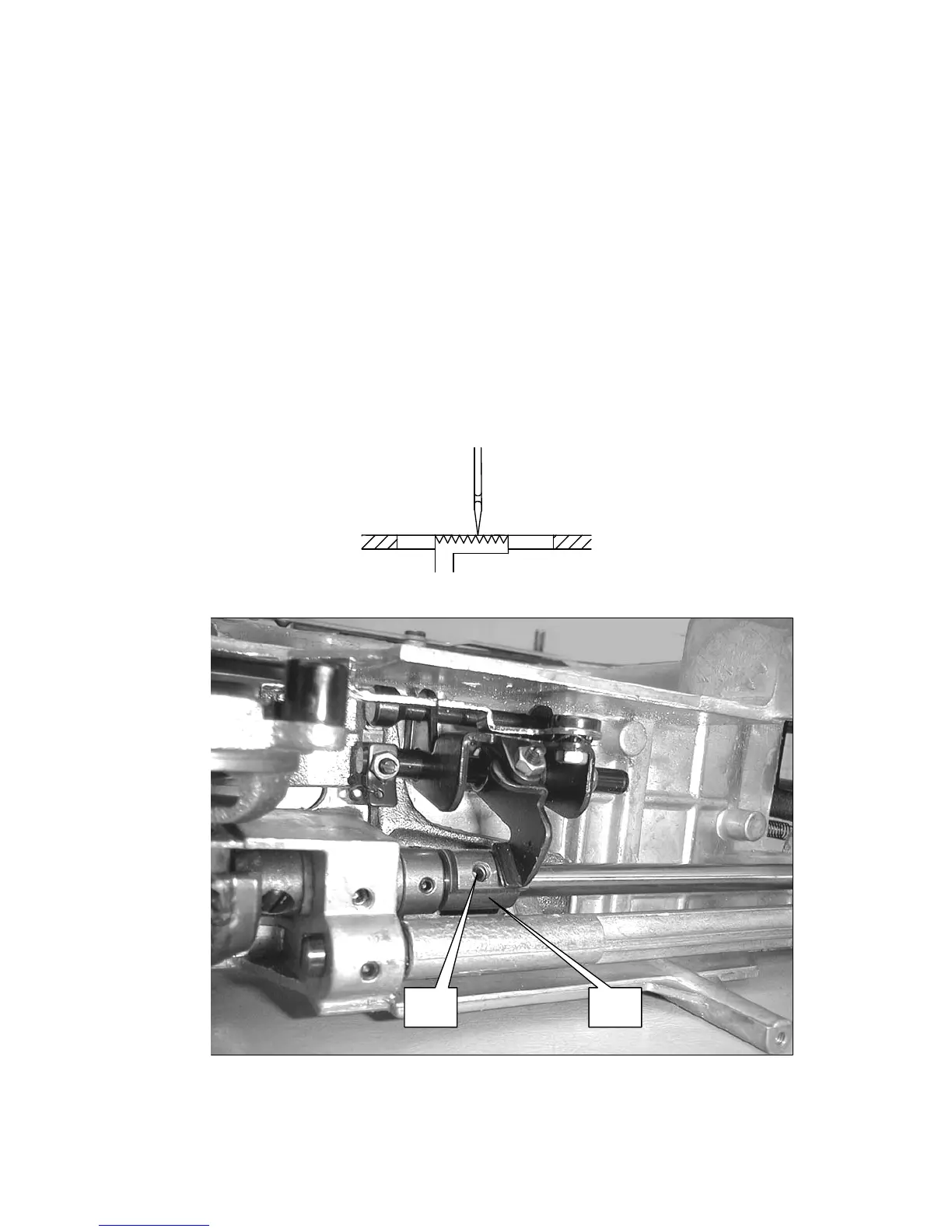

Fig.1
