ELNA 2003 - ZERO POSITION of ZIGZAG STITCH (for Models 2007 and 2005)

24
ZERO POSITION OF ZIGZAG STITCH (for models 2005and 2007)
When the machine is set with zigzag lever at “0” and the pattern selector
dial at “ 1 “, the needle bar should not swing.
1 Set the pattern selector dial at “ 1 “ and the zigzag lever at “0”.
2 Remove the front panel (see page 6).

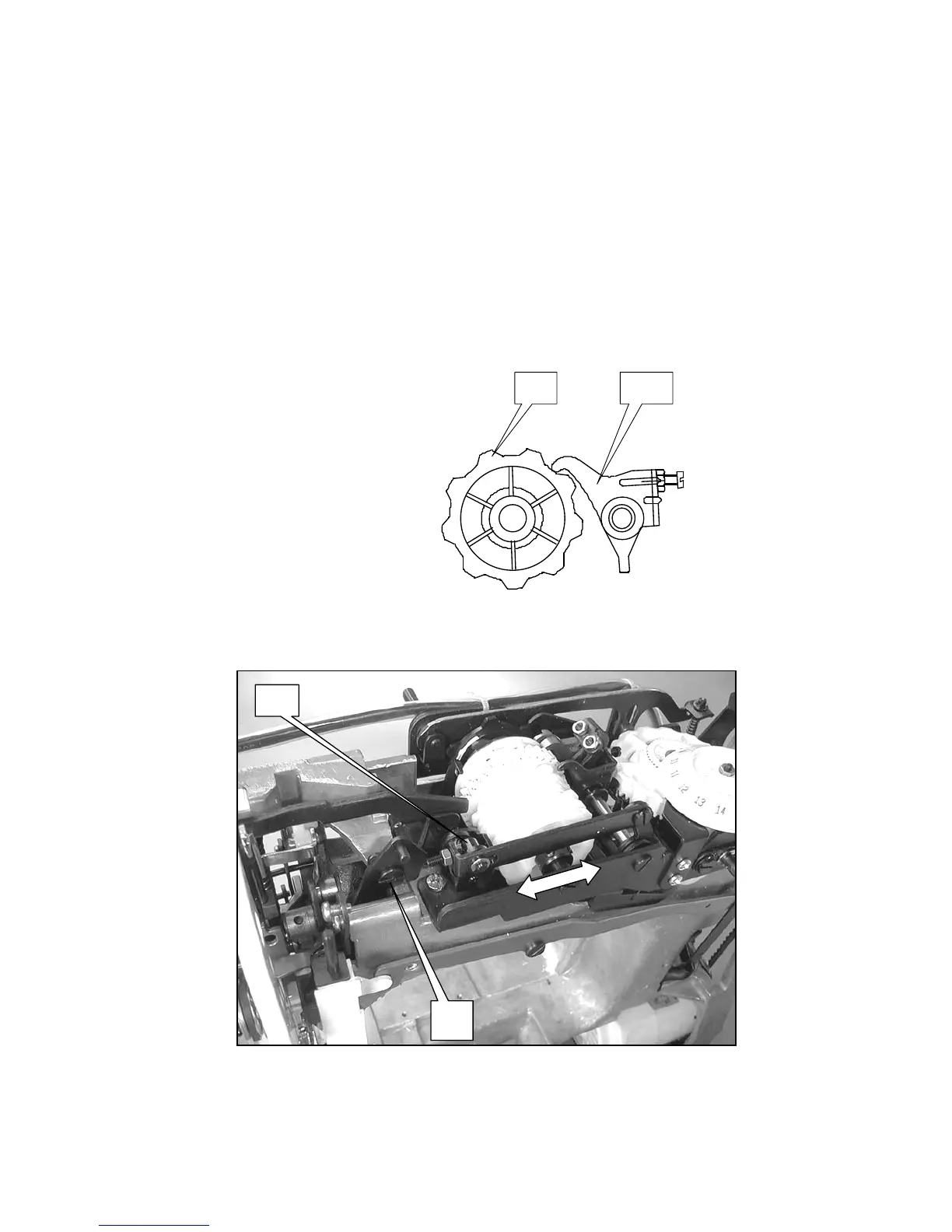

3 Turn the fly wheel toward you with your hand so that the cam follower B
comes on the bottom of zigzag cam C.
4 Vibrate the arms D in the direction of arrows as shown below.
5 Turn the screw E to make sure that the needle bar does not swing.
6 Attach the front panel.
D
E
C
B
