ELNA 2003 - FEED TIMING

FEED TIMING
Dismantling the Rear cover (see page 5).

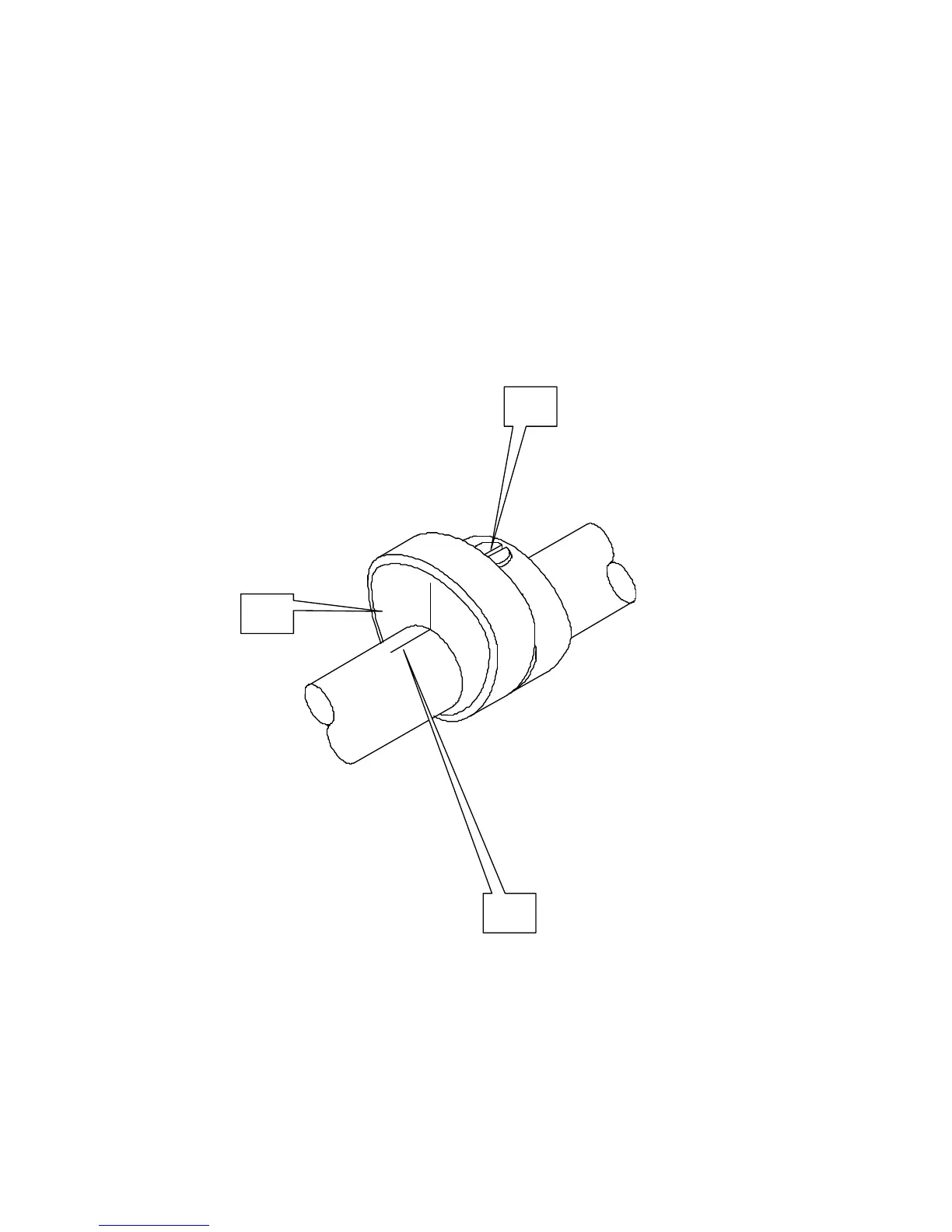

The reference mark A of feed cam should be aligned with mark B on the upper
shaft.
1. Loosen screw C.
2. Turn feed cam until marks A and B are aligned as per sketch and tighten
screw C.
3. Attach the rear cover
C
A
C
19
