MOTOR BELT TENSION
If the deflection A is 7 to 9 mm when the motor belt is pressed with the pressure of
300 g, the motor belt tension is correct.
1. Remove the front cover (see page 6).
2. Loosen the two set screws B and C. Then adjust the motor belt tension by
moving the motor D.
3. Tighten the two set screws B and C firmly.
4. Attach the front cover.

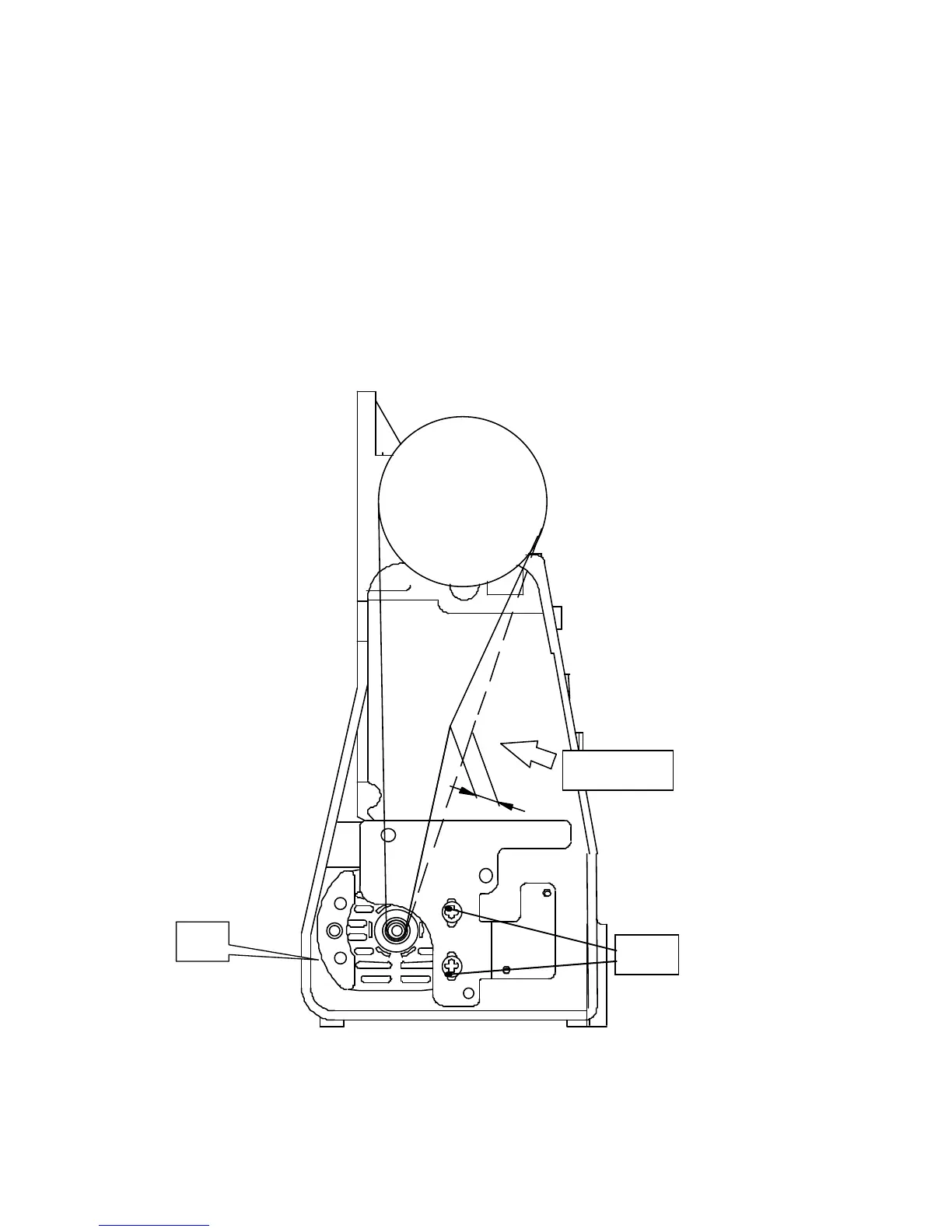

A (300g)
