31

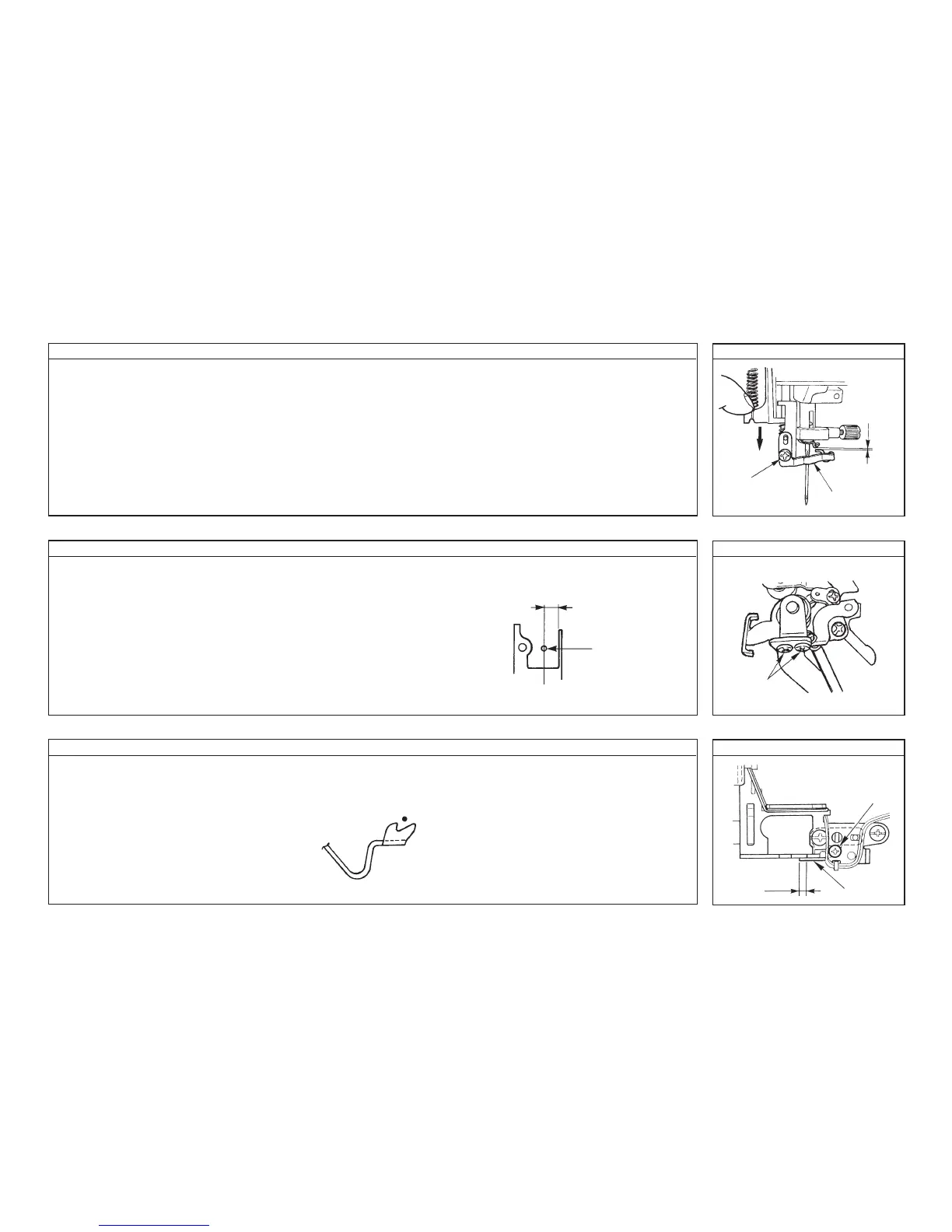

Loosen screw 1 and move 2 up or down so that the clearance provided between the needle clamp thread guide and the top end of needle
clamp threading arm is 0.6 to 1 mm when pushing up the spring rack section of threading working body and turning the needle clamp threading
arm.
(24) - 3 Adjusting the height of the needle clamp threading arm
Loosen screw 1 and adjust so that the distance from the top end of transfer body to the needle is 4.5 to 5 mm at the lower positon of the
transfer body.
(24) -4 Lateral adjustment of the the transfer body
0.6 to 1
mm
How to adjust
Adjustment drawing
How to adjust Adjustment drawing
4.5 to 5
Needle
1
2
1
Loosen screw 1 and adjust the lateral position of thread path control plate 2 so that a thread is induced into the fork end at the top end of the
needle calmp threading arm when a thread is set to the transfer body and the transfer body is placed in the lower position.
(Required value is 2.5 )
(24) - 5 Adjusting the thread path control plate
How to adjust
Adjustment drawing
0
-0.2
1
2
0
-0.2
2.5
