ELNA E9020 - Adjusting the Position of the Face Plate

32
Loosen 2 and adjust the longitudinal position of face plate 1 so that the clearance provided between the threading body and the face
plate is 1 to 2 mm when threading body 3 rotates and comes down to the position of the thread take-up spring guide section of the face
plate.

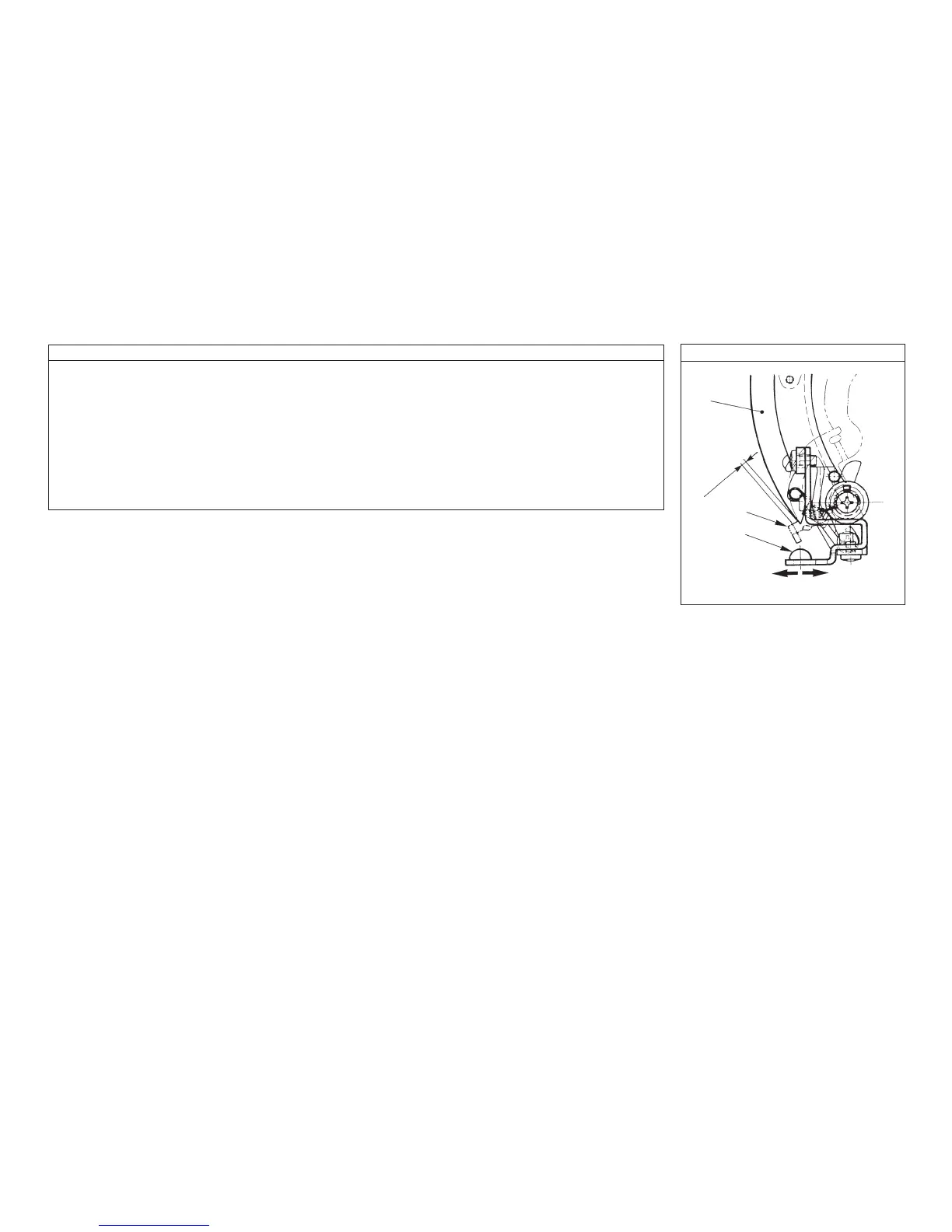

(24) - 6 Adjusting the position of the face plate
How to adjust Adjustment drawing
1
3
2
1 to 2 mm
