ELNA E9020 - Main Shaft Support Adjustment; Driving Gear Cover Position Adjustment

38

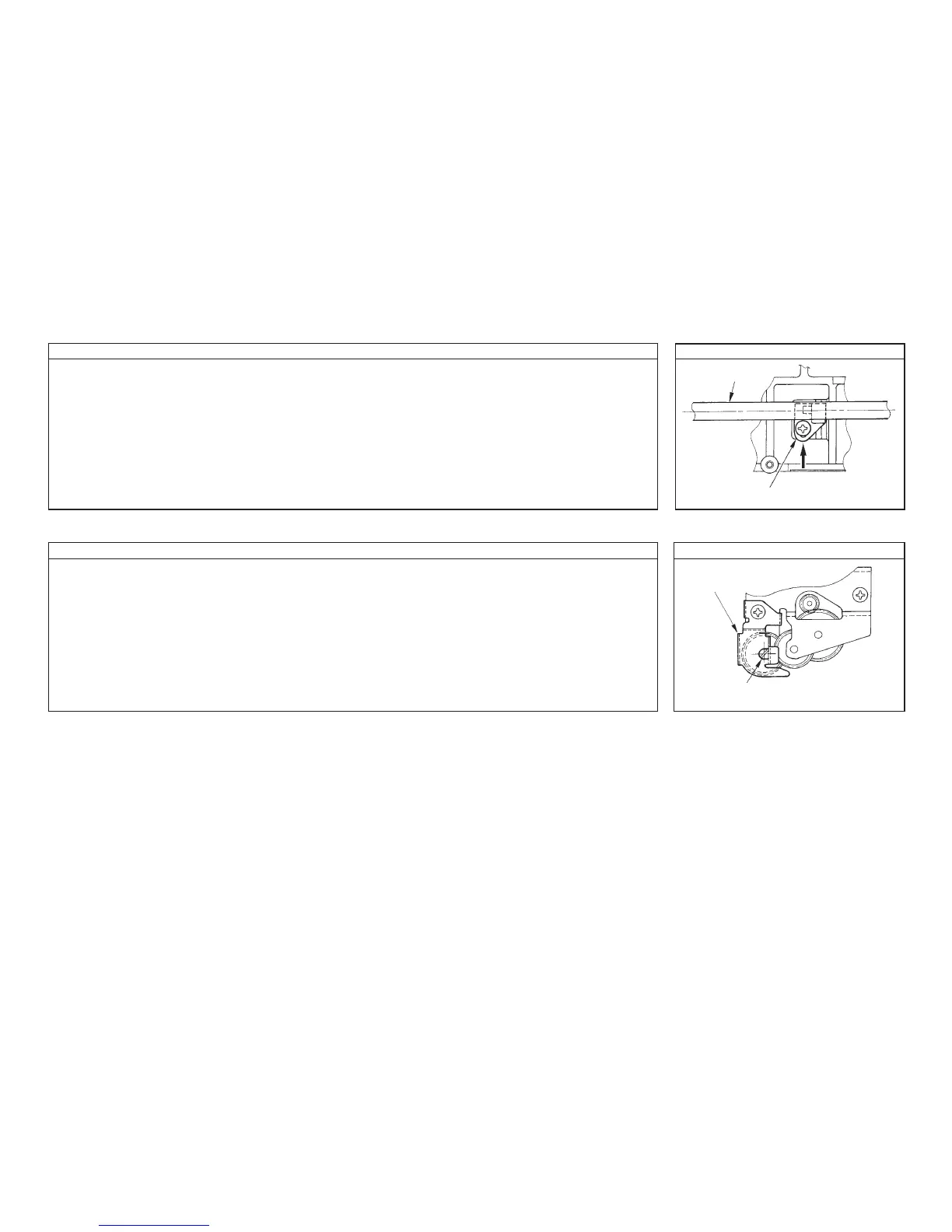

Press main shaft support 1 in the direction of P as shown in the illustration and fix it.
At this time, press main shaft 2 to such an extent that it bends upward by 0.05 mm.
(29) Adjusting the main shaft support
How to adjust Adjustment drawing
Fix driving gear cover 1 at the position where the groove for screwdriver
comes to the center of the opening portion of driving gear cover 1.
(30) Adjusting the position of the driving gear cover
How to adjust Adjustment drawing
Opening portion
1
2
1
