7
Free Arm
Free arm sewing is good for circle areas like sleeves,
waistbands and pant legs. If socks, knee or elbow areas
need mending, the free arm will be best to use.
Circular Sewing Pivot Points
The freee arm has holes q that are 1 cm apart from
each other. Use the holes to sew circles and scallops
with the circular sewing pivot pin.

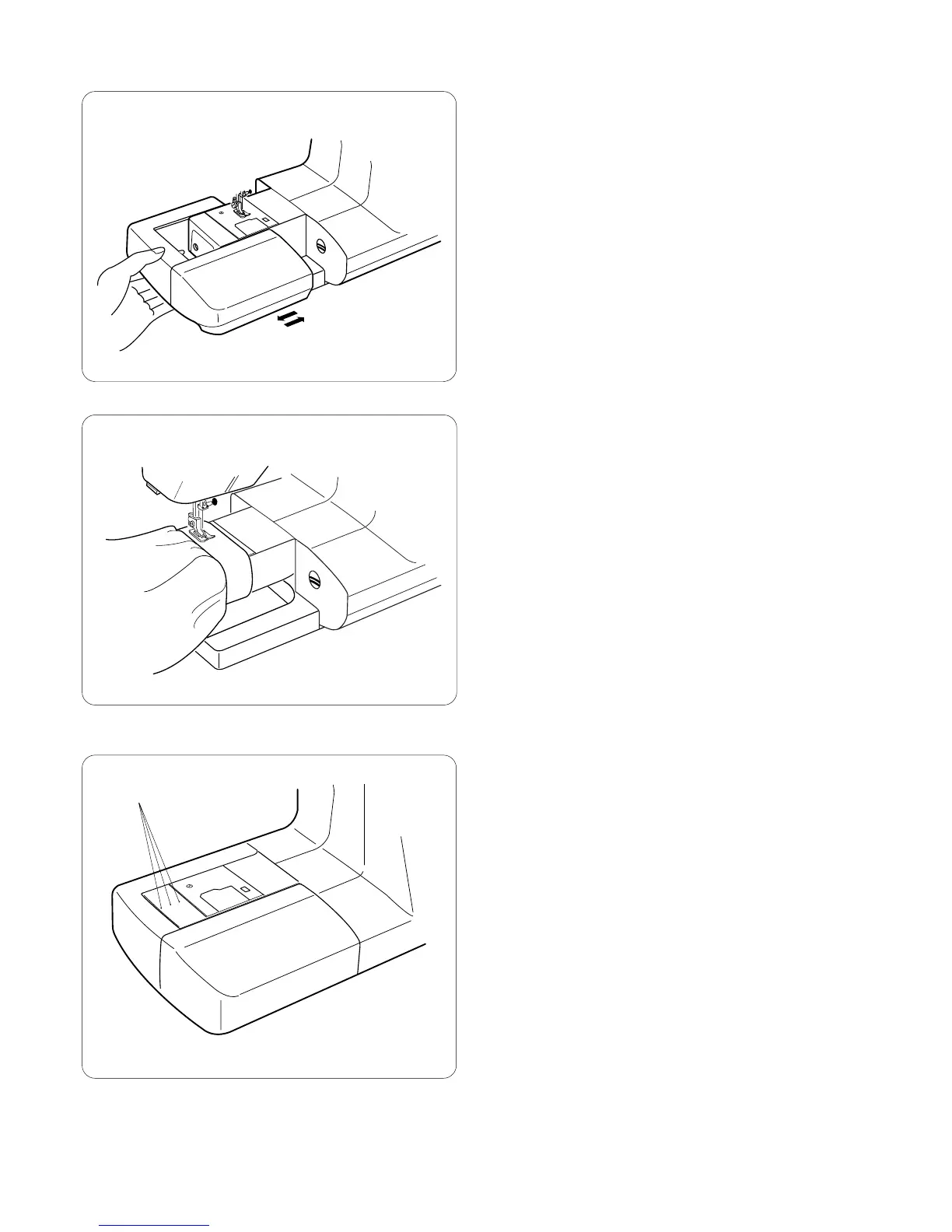

Extension Table and Free Arm
Extension Table
The extension table provides more sewing space to
make sewing easier. The extension table can be easily
removed for free arm sewing.
To Remove:
Pull the end of the extension table away from the
machine, as shown.
To Attach:
Push the table back into place to reattach the extension
table.
q
