Chapter 4 Configuration
MAN_105G_1.5 Page 58

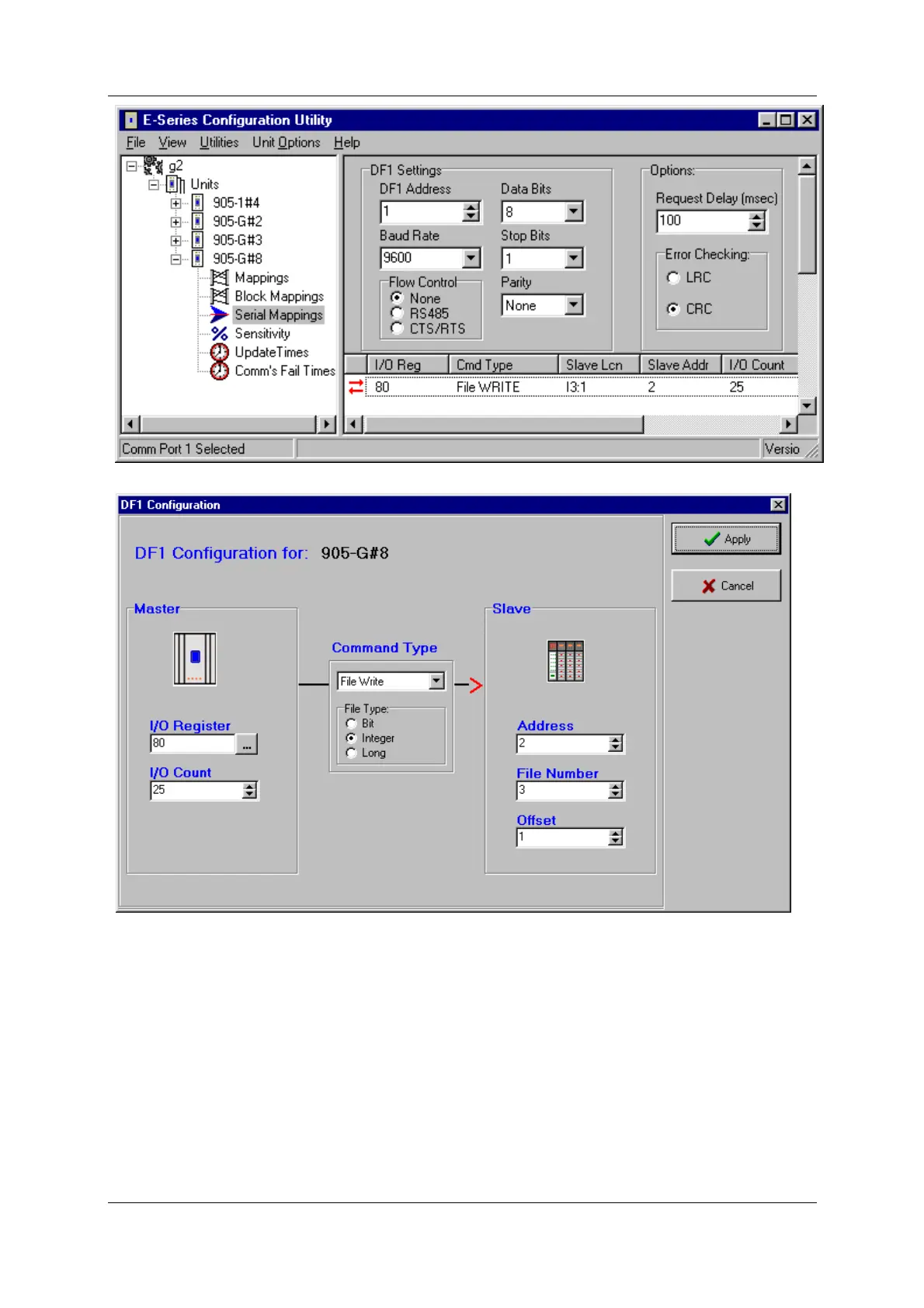

The entry under “I/O Register” is the first I/O register in the 105G to be transferred - the
“I/O count” is the number of registers to be transferred.
The “Command Type” selected is a file write command (you can select read or write) -
which means that the values are sent from the 105G to the host device. The type of write
command is a “Integer” write, meaning that the register values will be written as register
values.
The DF1 address of the host device (or “Slave”) is 2.
Discrete I/O
The value of a digital I/O point is stored in the 105G database as a hexadecimal '0000' (“off”) or
hex 'FFFF' (“on”). However the 105G will generate either a ‘0’ (“off”) or ‘1’ (“on”) to a binary
