Chapter 4 Configuration
MAN_105G_1.5 Page 74

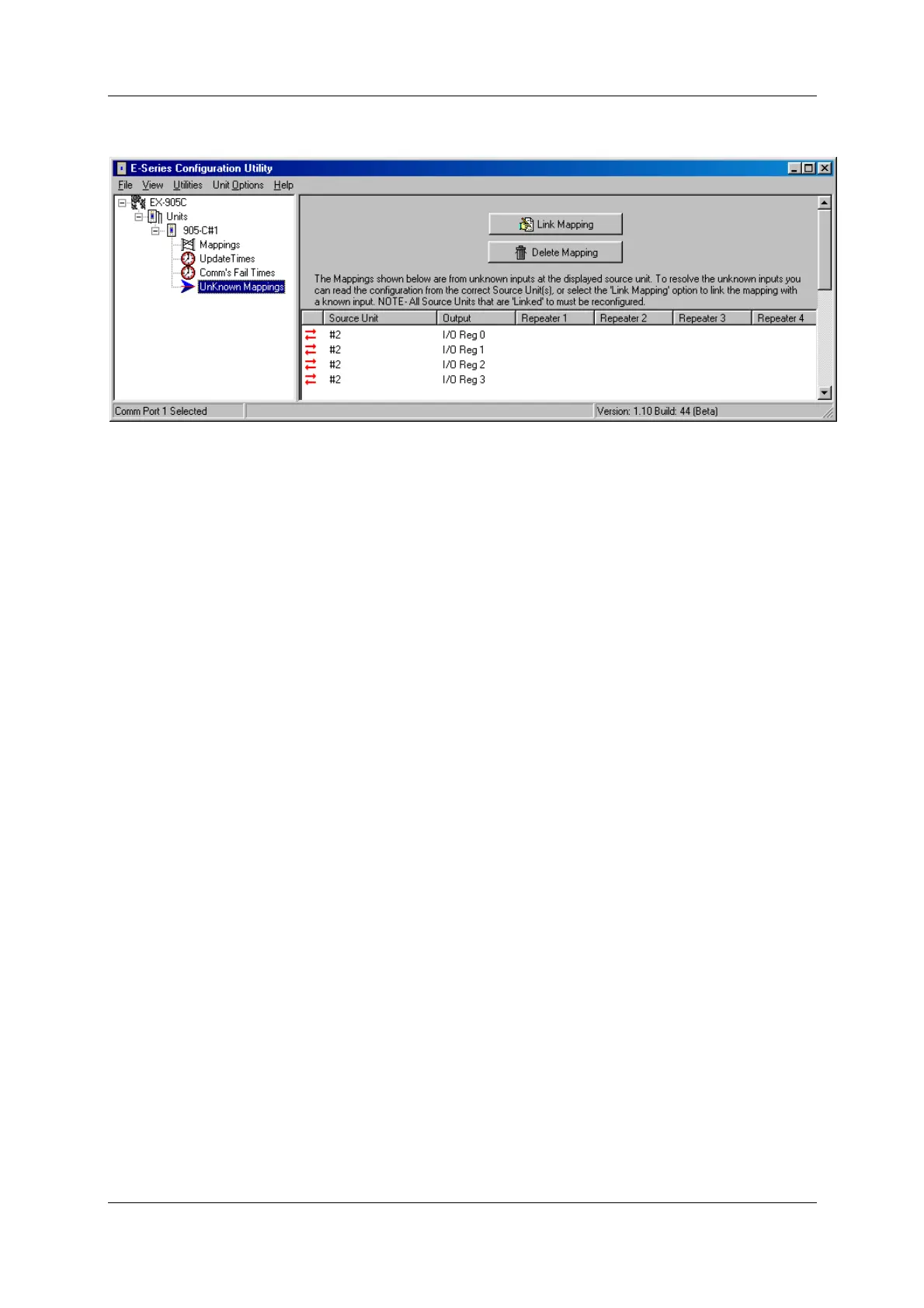

If you are unable to load into the archived project, then mappings to remote modules will be
displayed, but mappings from remote inputs will be shown as “Unknown Mappings”.
If you also load the configurations from the other remote modules in the system, then these
unknown mappings will disappear as the program can determine where the remote inputs are.
Alternately, you can select “Link Mapping” and manually enter the remote inputs.
