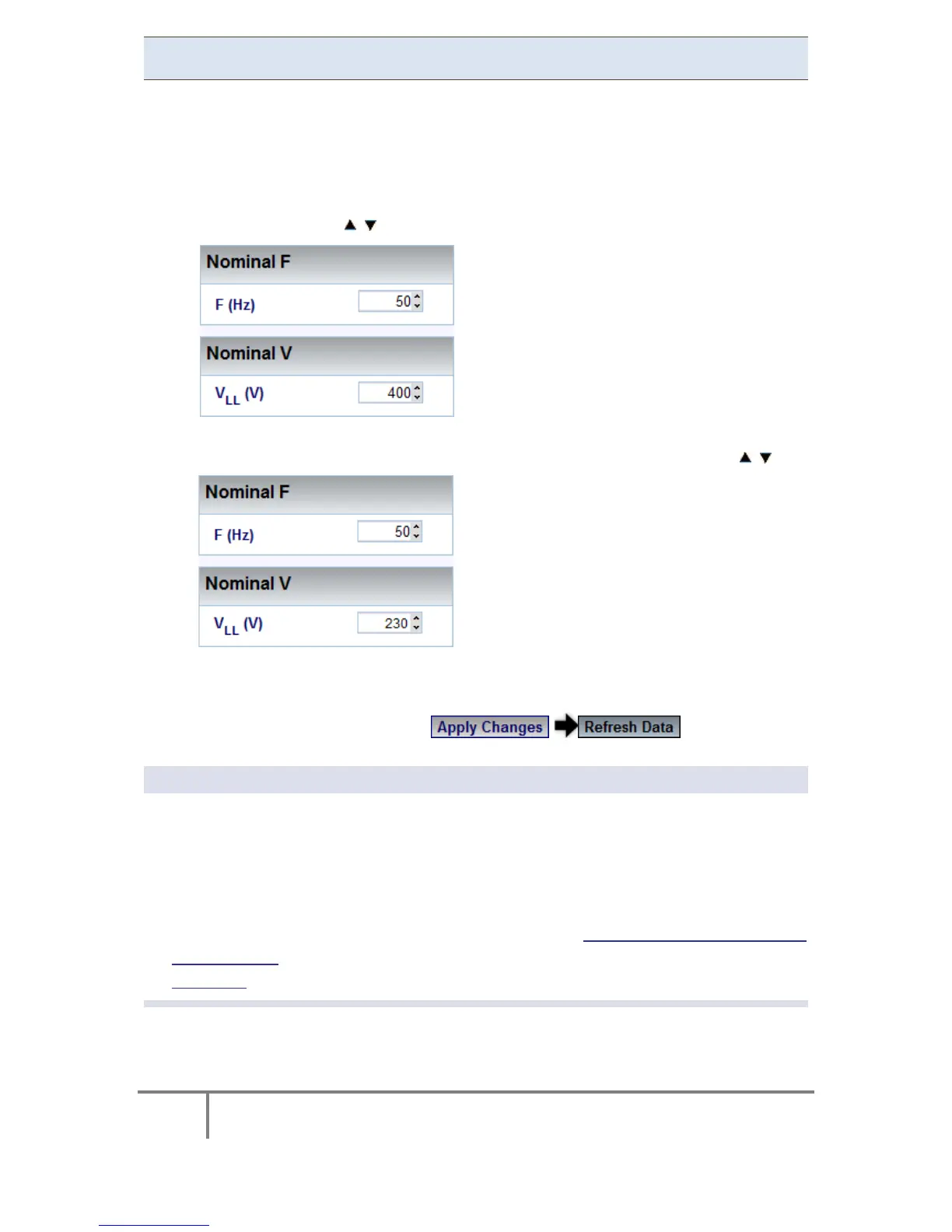

Define Nominal Values
The Nominal section defines the nominal values for Frequency (F) and Voltages (V).
The Fr equency n ominal a ffects c ompliance. Fo r e xample, w hen 5 0Hz n ominal i s
set, the window is 10 cycles, and for 60Hz the window is 12 cycles.
For HV & MV Networks, define the Nominal Values for Frequency (F) and
Voltages (V) (with / ):
The ratio for LV Networks is based on the same concept & specifications -
Define the Nominal Values for Frequency (F) and Voltages (V) (with / ):
If the PT Ratio is inapplicable, then set your values to read:
Primary = Secondary = Nominal
To apply your changes select to review them
NOTE NOTE NOTE ...
Should you enter incorrect nominal values, the device may not record anything.
For m aximum lo gging r esolution and ef ficiency i t is r ecommended k eeping
NOMINAL values as close to the expected normal condition values and NOT to
maximum values!
FOR NOMINAL V VALUES: I f y ou ar e u sing a Potential T ransformer ( PT)
Configuration for MV/HV networks, the Nominal V values needs to be set to the
PT values.
