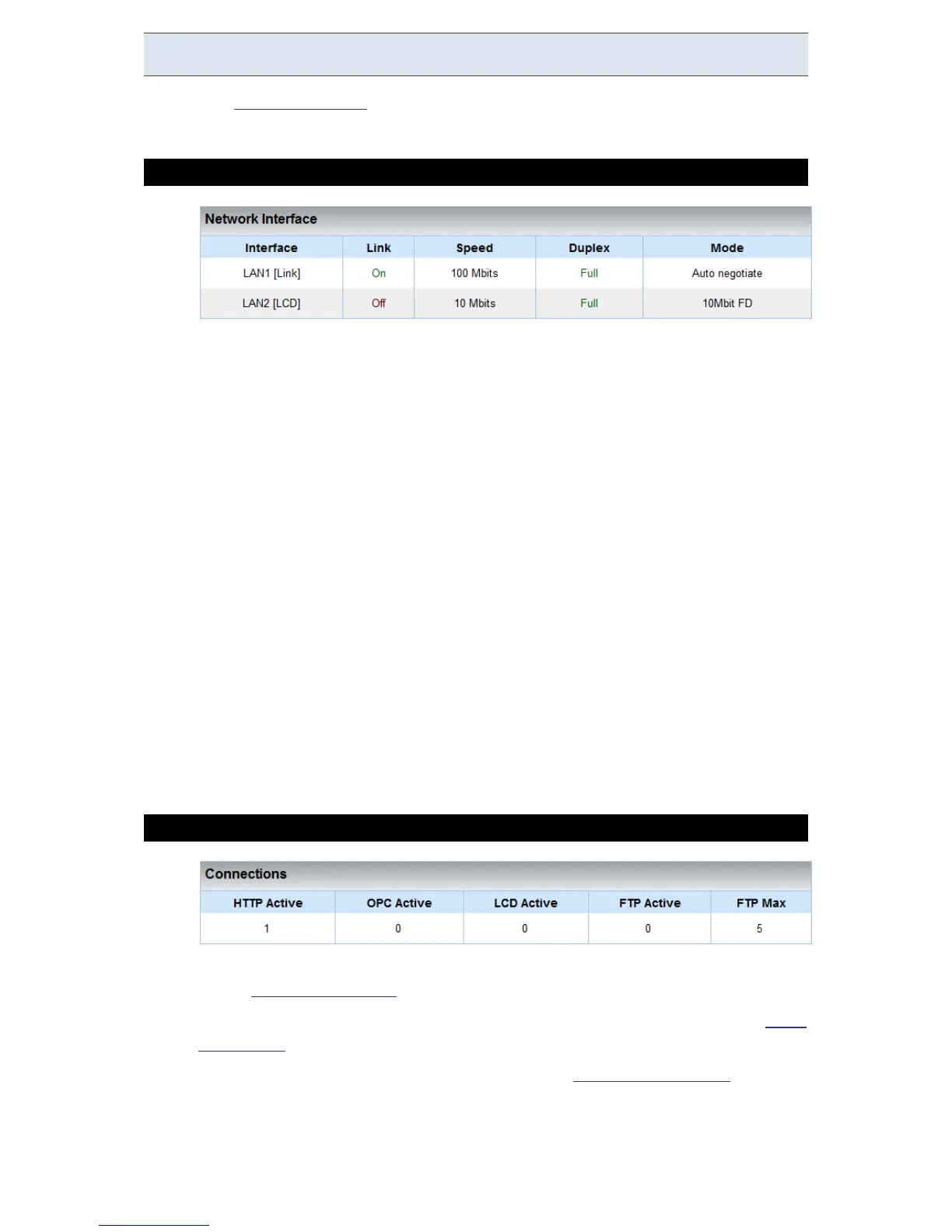

Status Summaries
Within the Network Window you are able to view two sections that summarize your
G4K BLACKBOX's network configurations. The summaries include:
NETWORK INTERFACE
 LAN 1 Status:
 Link: On ( indicates G4K U nit's I P A ddress i s e stablished in y our
Network) / Off (G4K Unit's IP Address is not established)
 Speed: Flow control of data transferrable speed
 Duplex: Full (using Full Duplex for communication) / Half (using Half
Duplex for communication)
 Mode: Auto n egotiate m eans tha t y our G4K c onnected w ith th e
Network s ever ch ooses co mmon t ransmission p arameters ( Speed,
Duplex Mode & Flow Control)
 LAN 2 G4100 LCD Status:
 Link: On (indicates your G4100 Unit's IP Address is established in the
2nd Network) / Off (Unit's IP Address is not established / not in use)
 Speed: Flow control of data transferrable speed
 Duplex: Full (using Full Duplex for communication) / Half (using Half
Duplex for communication)
 Mode: Transmission parameter is set at 10Mbit at Full Duplex (FD) to
the 2nd Network's Server
CONNECTIONS
 HTTP Active: Connection status of your G4K BLACKBOX Unit & Web Browser
as per Port Configuration
 OPC Active: Connection s tatus b etween y our G4 K BLA CKBOX & the DNP3
OPC Server
 LCD Active: Connection status of G4100 as per LAN 2 Configuration to the
2nd Network
 FTP Active: Connection status of the File Transfer Control Channel as per
Port Configuration
