Power
This page displays different electrical power parameters relevant to the Specific
G4K Unit Configuration.

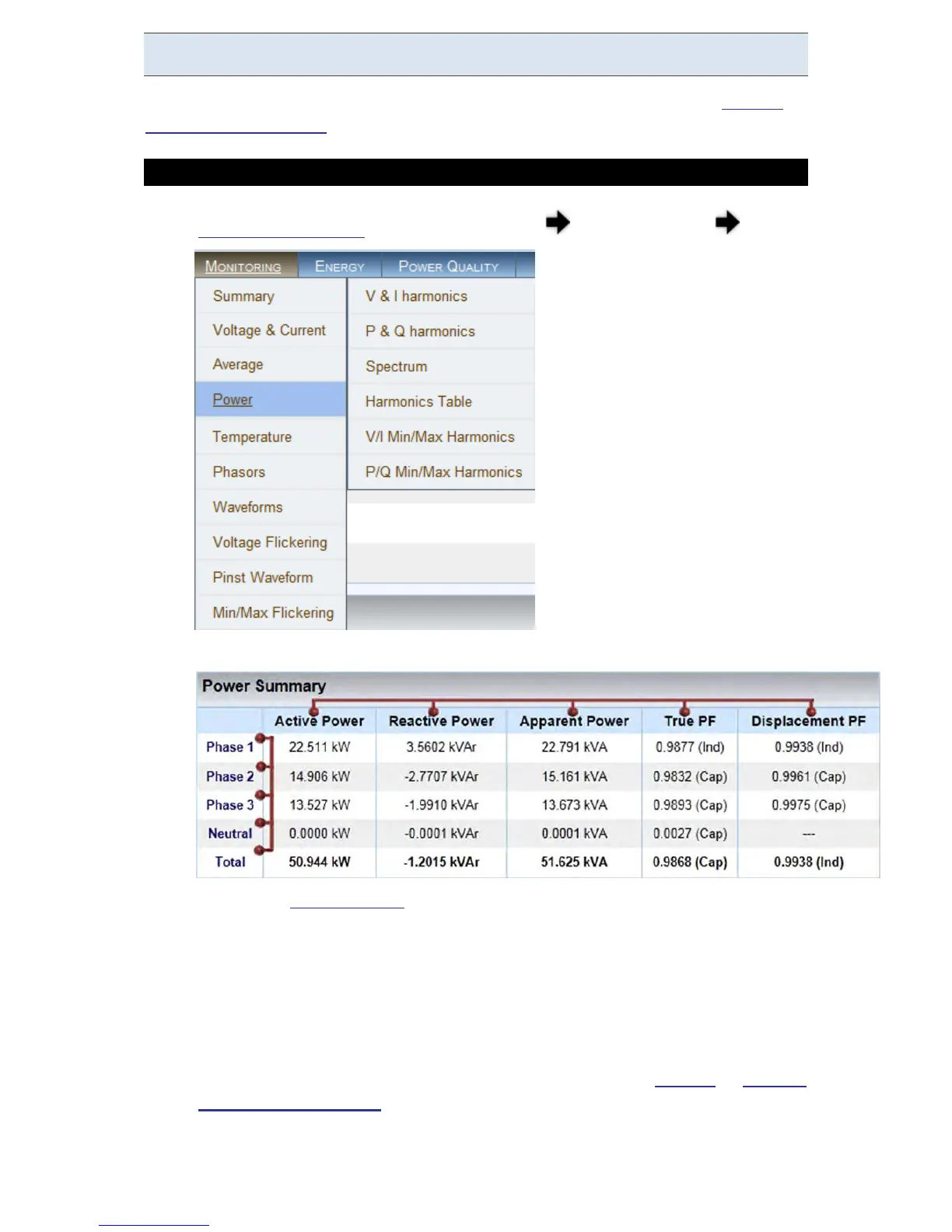

OPEN THE POWER SUMMARY WINDOW
 Access your G4K Unit via the Web Interface select Monitoring Power:
 The Power Summary Window will now open:
Verify your Configurations in this window that displays:


Reactive Power
Active Power
 Apparent Power
 True & Displacement Power Factor
In m ost network c onfigurations th e Active Power will reflect a Positive
Value. S hould i t h ave a Negative Value, recheck y our Voltage & Current
Polarity Configuration. I n the presence of a g enerator, the Active Power
will reflect a Negative Value.
