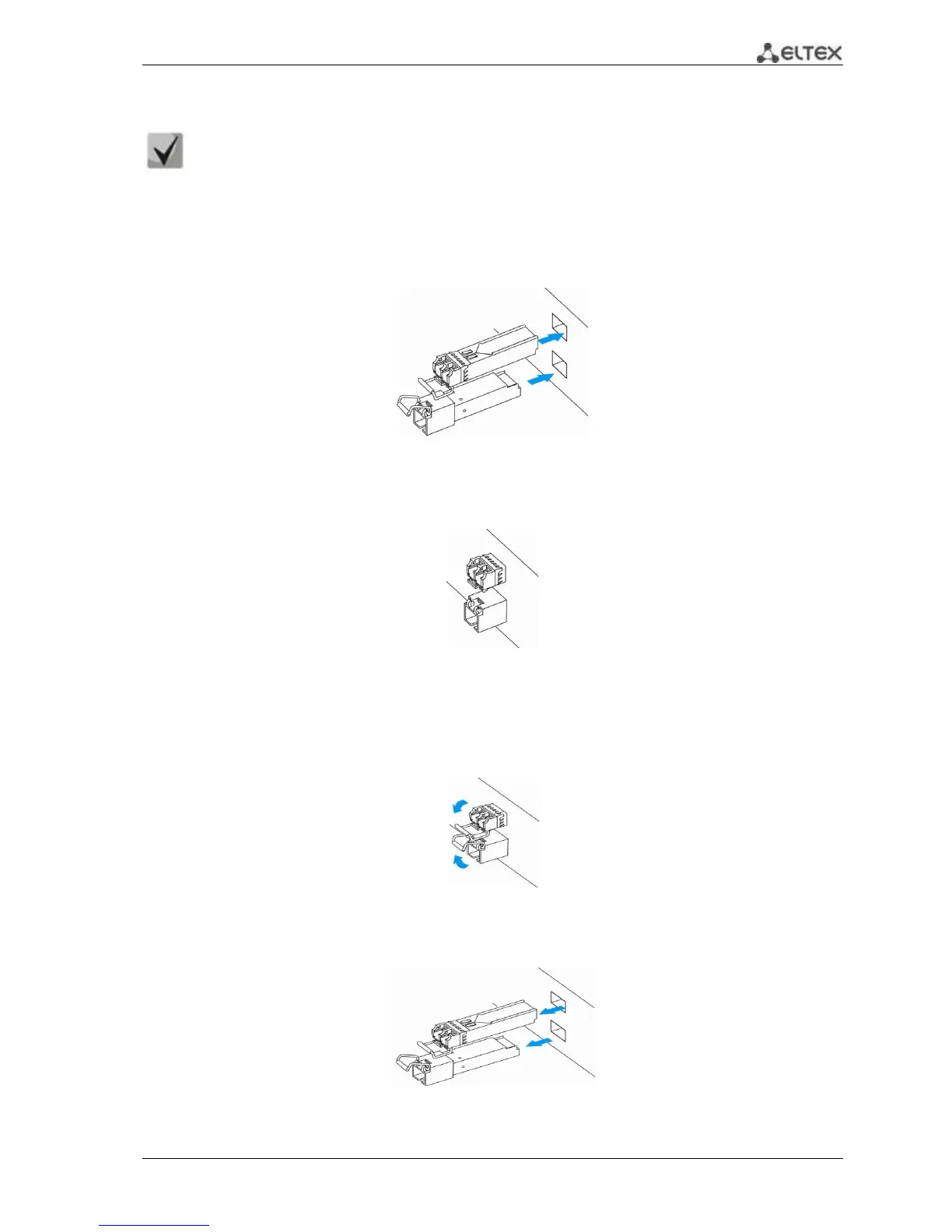

Transceiver installation
1. Insert the top SFP module into a slot with its open side down, and the bottom SFP module with its
open side up.
Fig. 3.5 —SFP transceiver installation
2. Push the module into the device housing until the it is secured with a clicking sound.
Fig. 3.6 —Installed SFP transceivers
Transceiver removal
1. Flip the module handle to unlock the latch.
Fig. 3.7 —Opening the Latch of SFP Transceivers
2. Remove the module from the slot.
Fig. 3.8 —SFP transceiver removal
