ESR Series Routers Operation Manual 13
2.4 Design
This section describes the design of the device. Depicted front, rear, and side panels of the device,
connectors, LED indicators and controls.
The device has a metal housing available for 19” form-factor rack mount; housing size is 1U.
2.4.1 ESR-1000, ESR-1200 design
2.4.1.1 ESR-1200 front panel

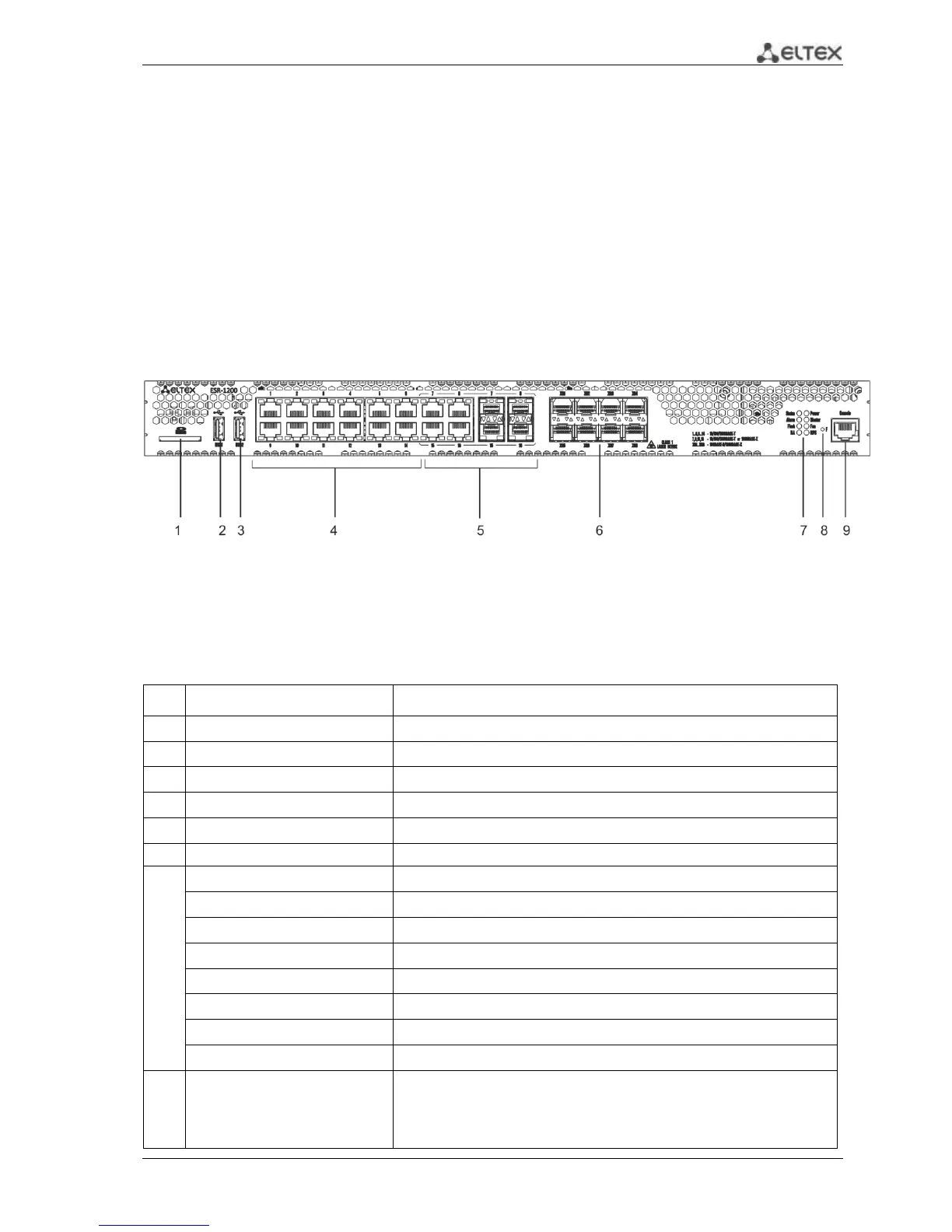

The front panel of ESR-1200 is depicted in Fig. 2.1.
Fig. 2.1 - Front panel of ESR-1200
The list of connectors, light indicators and controls located on the front panel of ESR-1200 lists in
Table 2.9
Table 2.9 - Description of connectors, indicators and controls located on the front panel of ESR-1200
Functional key that reboots the device and resets it to factory settings:
Pressing the key for less than 10 seconds reboots the
device;
Pressing the key for more than 10 seconds resets the
To Next Page
