ESR Series Routers Operation Manual 93
Configuration has been successfully committed
R1# confirm
Configuration has been successfully confirmed
Configure R2 in the same manner.
Objective 2: Establish virtual gateways for 192.168.20.0/24 subnet in VLAN 50 and 192.168.1.0/24
in VLAN 60 using VRRP with Master sync feature. To do this, you have to group VRRP processes. IP
addresses 192.168.1.1 and 192.168.20.1 are used as virtual gateways.

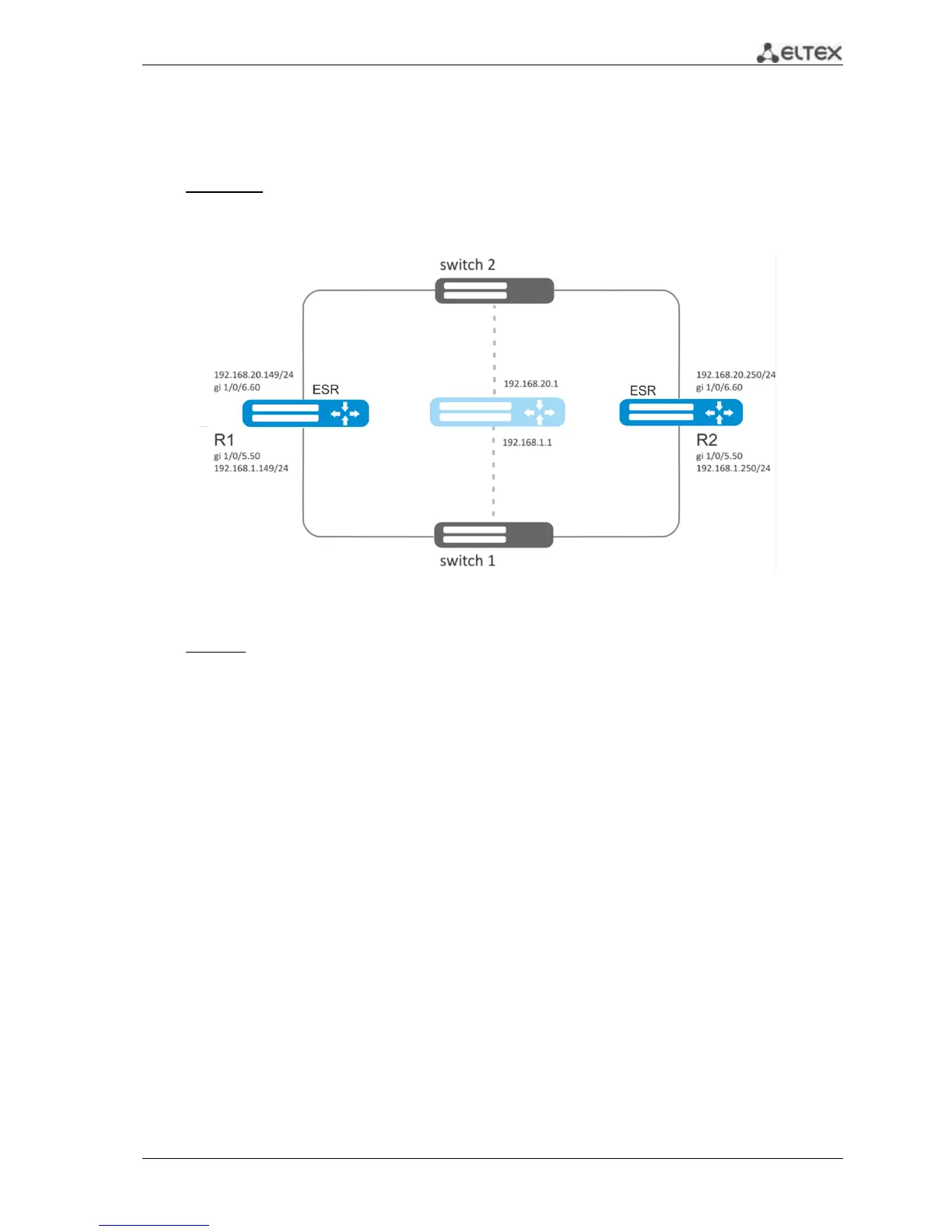

Fig. 7.33—Network structure
Solution:
First, do the following:
Create the respective sub-interfaces
Configure zone for sub-interfaces
Specify IP addresses for sub-interfaces
Main configuration step:
Configure R1 router.
Configure VRRP for 192.168.1.0/24 subnet in the created sub-interface.
Specify unique VRRP identifier:
R1(config-sub)#interface gi 1/0/5.50
R1(config-subif)# vrrp id 10
Specify virtual gateway IP address 192.168.1.1:
R1(config-subif)# vrrp ip 192.168.1.1
Specify VRRP group identifier:
R1(config-subif)# vrrp group 5
